2019-On Mercedes Sprinter Van S1 Roof Rack Rail Kit Baja Designs

2019-On Mercedes Sprinter Van S1 Roof Rack Rail Kit Baja Designs

$0.00 USD

Give your van the best camp lighting solution with our 2019-On Mercedes Sprinter Van S1 Roof Rack Rail Kit. This kit comes with 4 S1s in a work scene lens pattern, mounting brackets, wiring and all the necessary hardware for an easy install.

Note: This kit was only tested on the OEM roof rack rails.

Baja Designs Features:

  • Satisfactions Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):

  • Lumens: 2,375 Utilizing 1 LED
  • Wattage/Amps: 20W / 1.45A
  • Dimensions: 2.1 inch x 2.1 inch x 2.1 inch
  • Safe Voltage Range: 9-28V
  • Weight: 0.4 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

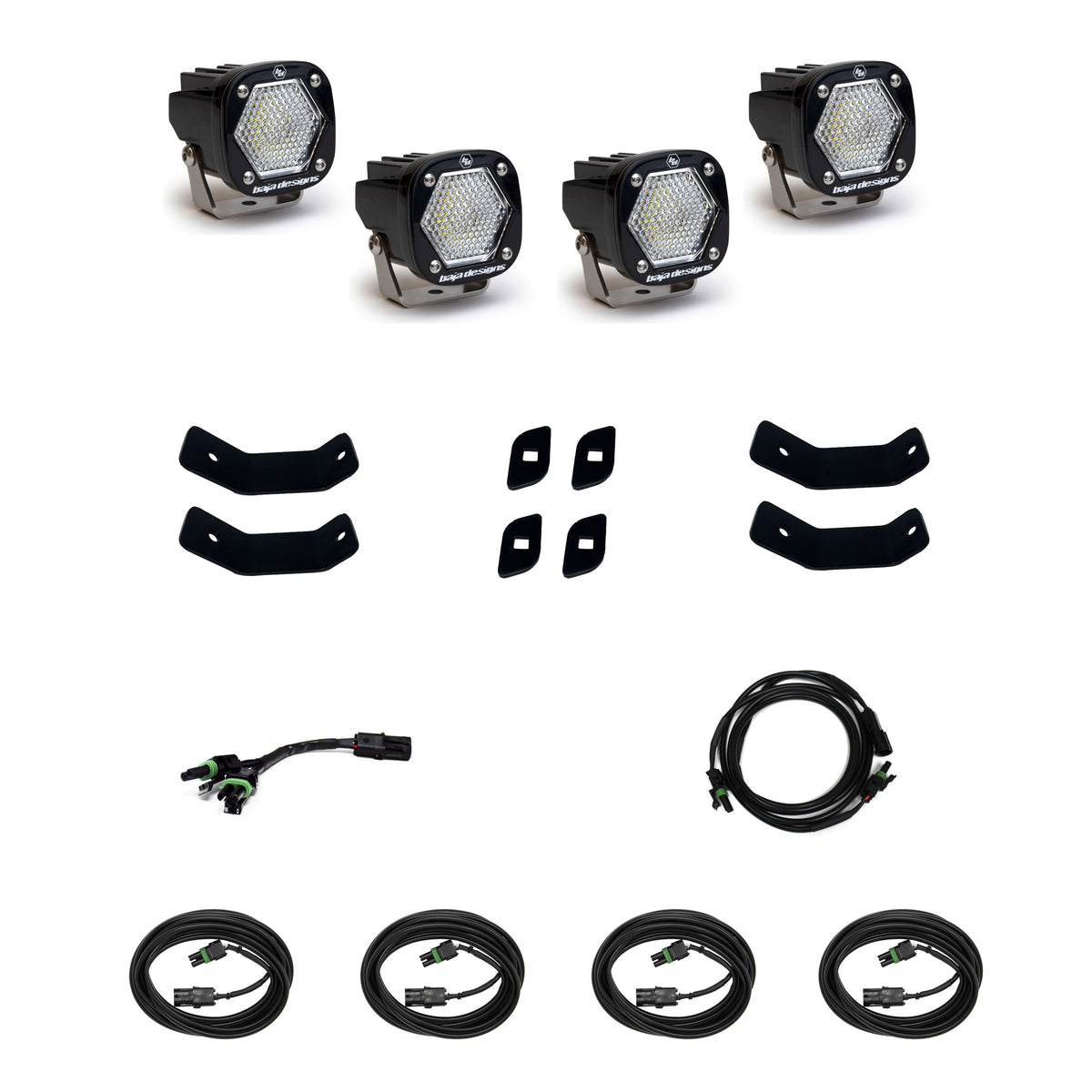

Includes:

  • x4 S1 LED Lights in Work Scene
  • x8 Mounting Brackets
  • x1 Toggle Switch Style Wiring Harnesses
  • x4 10 foot Extensions
  • x2 55 inch Splitters
  • x1 Wiring Splitter
  • All necessary hardware

Application:

Mercedes Sprinter Van 2019-On

Patterns:

Work/Scene: Excellent work light or scene light with an extremely smooth circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
