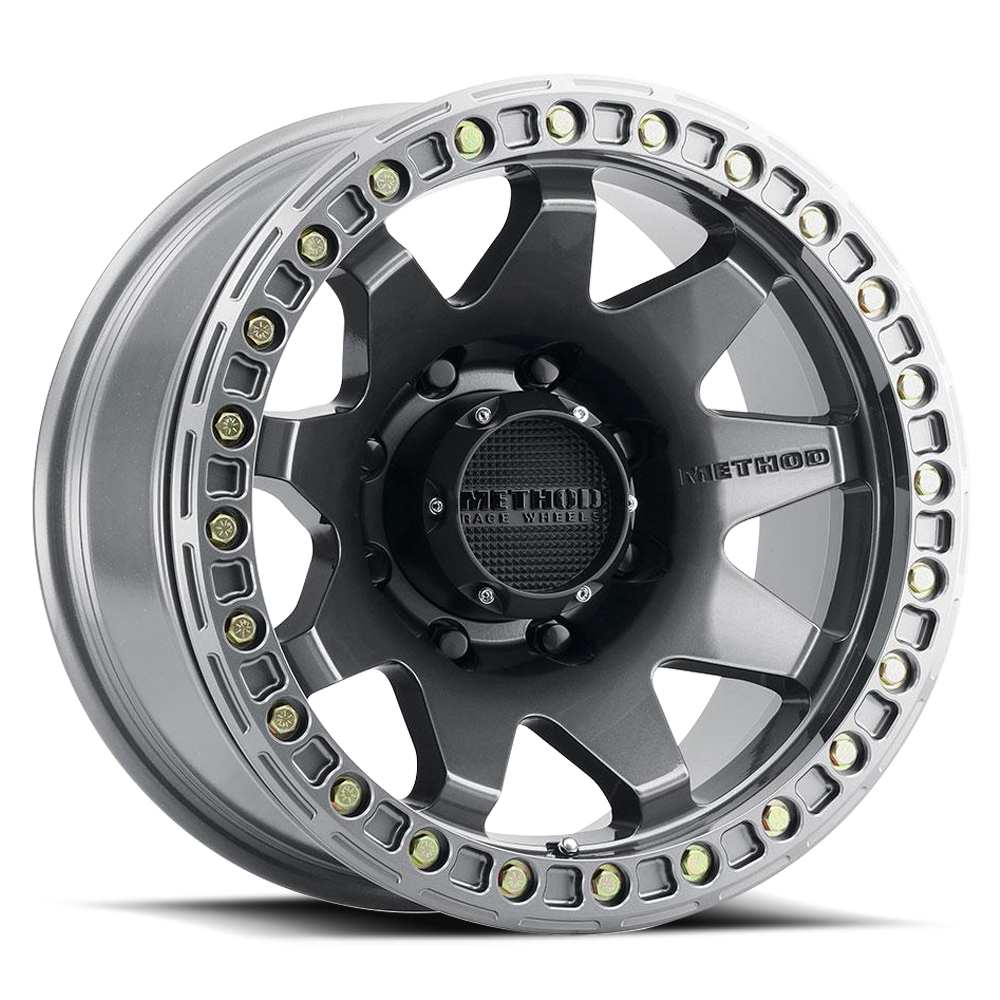

Aluminum Wheels 17x9 MR108 Bolt Pattern 8 On 165.1 Offset -44 Lip Size 0.63 Gloss Titanium GY Method

The 108 Beadlock Wheel boasts a rugged 9 spoke design with a debossed Method logo on the spoke. It's our first wheel to feature both Beadlock and our patented Bead Grip technology.

The added bead seat on the inner lip creates unmatched tire security. With extra material added to high-stress areas and featuring 3/8 inch beadlock hardware, the wheel is able to achieve a 4,000 lbs. load rating.

Details:

• Solid A356 aluminum with T6 heat treatment construction
• Tough 9 spoke design with debossed METHOD logo on spoke
• Forged 6061 aluminum V5 beadlock ring
• Patented Bead Grip bead seats on inner lip
• 3/8 inch Grade 8 zinc-plated beadlock hardware kit included
• Redundant sets of threaded beadlock hardware holes machined into wheel
• Snap-on center cap with embossed METHOD logo
• Push through cap with embossed METHOD logo for 8 lug applications
• Hub centric fitments for common applications
• Super strong 4000 lbs. load ratings
• 4,000lb load rating tested for use on tires up to 40 inch in size

Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating

Specs

• Wheel Size: 17x9
• Model: MR108GY
• Color: Gloss Titanium
• Offset: -44
• Bolt Pattern: 8 On 165.1
• Bolt Circle 1: 165.1
• Bore: 130.81
• Lip Size: 0.63
• Wheel Diameter: 17
• Width: 9
• Weight: 34.6
• Load Rating: 4000
• BSM: 3.5
• Material: A356 Aluminum
• Structure: 1-Piece
• Lug Type: Conical
• Exposed Lugs: Yes
• Lug Count: 8
• Replacement Cap: CP-T078B140-1
• Segment: Off-Road, Truck
• Warranty: Lifetime Structural Warranty
• Sold As: Each
