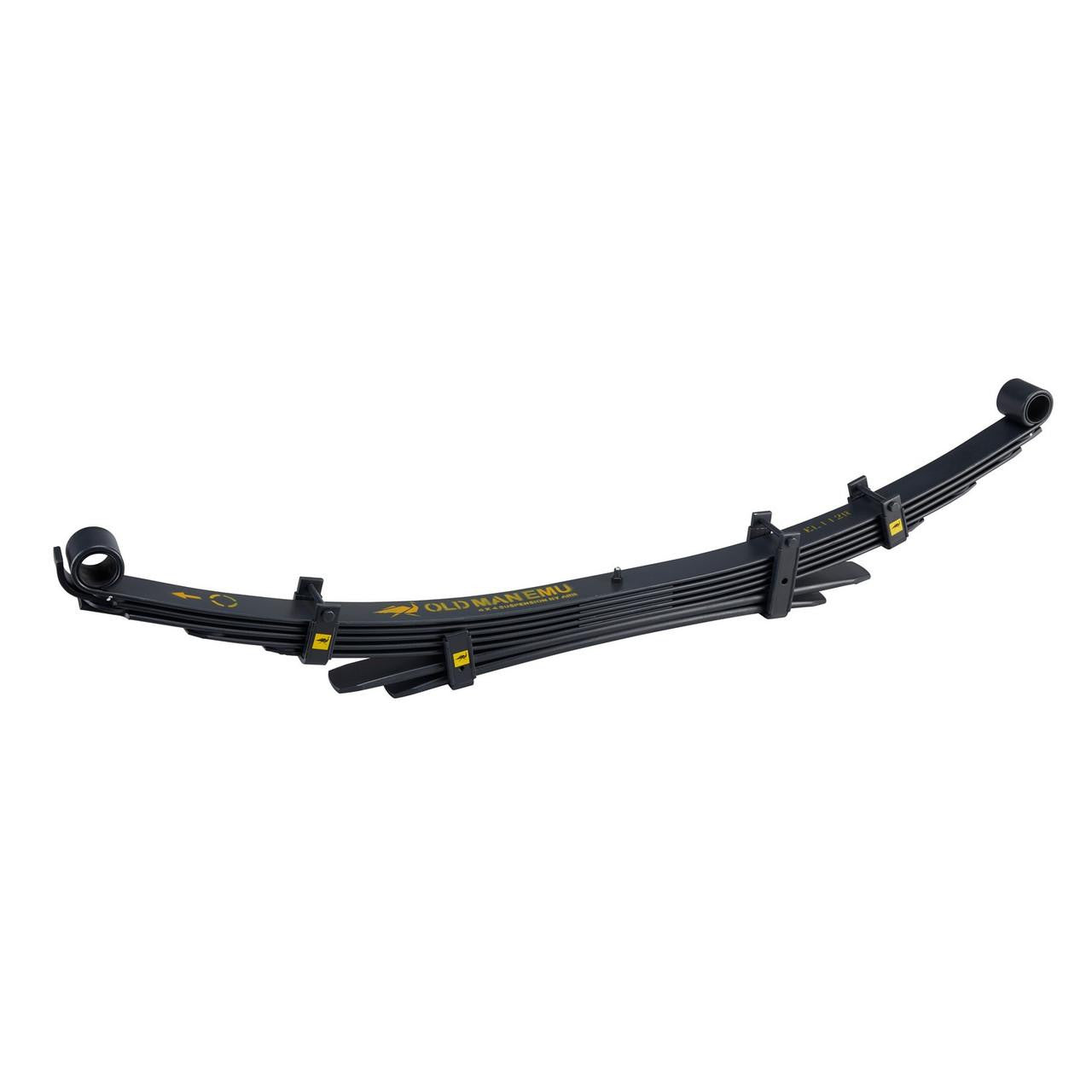

ARB Old Man Emu Leaf Spring - Heavy Load (EL112R)
ARB Old Man Emu Leaf Spring - Heavy Load (EL112R)
$359.95 USD
Couldn't load pickup availability
Old Man Emu leaf springs are engineered for optimum ride performance whatever the operating conditions. Numerous spring options suit recreational or commercial setups, and a set matched to Old Man Emu shock absorbers delivers improved ride, handling and load carrying capability.
Features & Benefits
- Draw-tapered and diamond cut leaves
- Bolted leaf clamps allow installation of anti-squeak nylon liners
- Fully scragged to reduce the risk of sagging
- Load tested to ensure the spring meets specification
- Military wrap design provides added safety
- Re-greasable nylon interleaf anti-friction pads
- Flat axle seat area for a positive, safe axle mount
- Shot peened to reduce stress and increase spring life
- Two-stage leaf pack on most rear springs for comfort
Specifications
| Spring rate | 193 / 506 lbf/in |
|---|---|
| Number of leaves | 5+2 |
| Primary free camber | 202mm |
| Eye diameter | 40mm front / 40mm rear |
| Weight | 32.0 kg (70.5 lb) |
| Warranty | 3 years |
Before you order
- What's included: Sold as a single spring. Two are needed per vehicle.
- Fitment: 193/506 lbf/in rate, 5+2 leaves, 202mm free camber - the heavy-load option, stiffer and taller than EL111R.
- Also needed: Fit with bushing kit and U-bolts; ARB recommends matched OME shocks.
