Blue Sea Systems

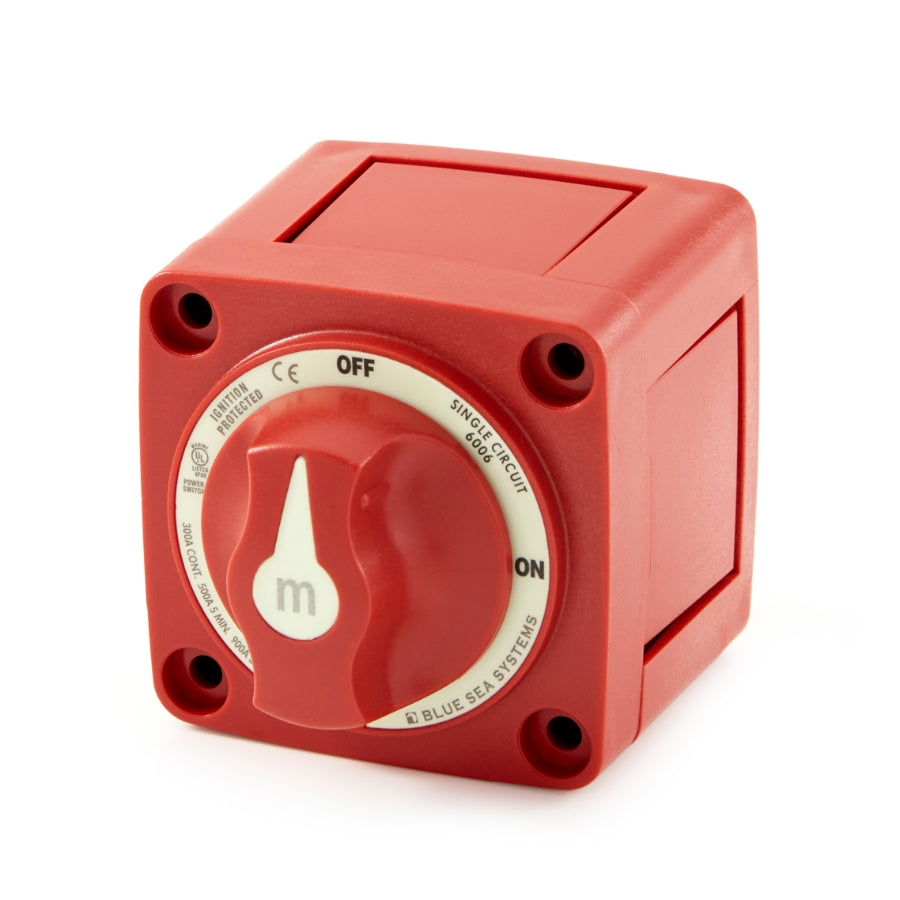

Blue Sea Systems 6006 m-Series Battery Disconnect Switch, 2 Position, On-Off, 300A, 48VDC
Blue Sea Systems 6006 m-Series Battery Disconnect Switch, 2 Position, On-Off, 300A, 48VDC
$33.60 USD
Couldn't load pickup availability
- Blue Sea Systems 6006 m-Series Battery Disconnect Switch
- Category: Battery Disconnect Switches
- Manufacturer: Blue Sea Systems
- Ignition protected - safe for installation aboard Gasoline powered boats
- Case design allows surface or rear panel mounting

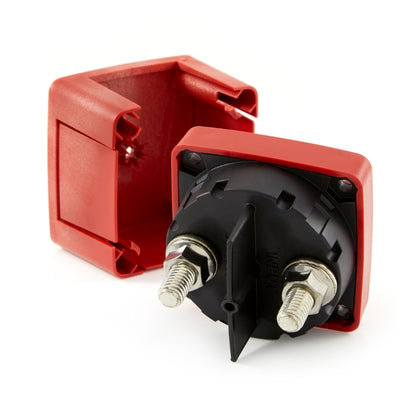

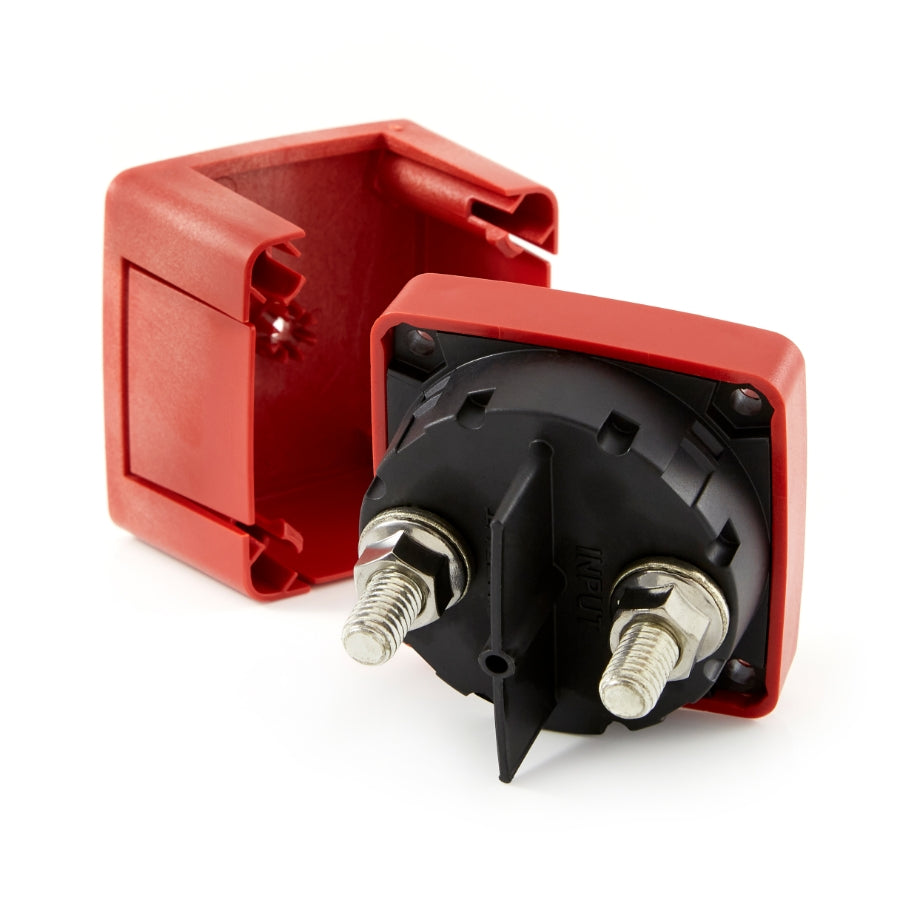

- Isolating cover with snap-on sections protects rear contacts
- 1 Battery inputs
- 0.65 lbs. (0.29 kg)
- 2 Switch Positions
- Continuous Rating of 300A. Intermittent Rating of 500A (5 minutes)
- 10 Second Cranking Rating of 1500A. 1 Minute Cranking Rating of 775A
- 4/0 Ga. (120mm²) cable size to meet ratings
- 1.12" (28.45 mm) clearance For 4/0 Ga. cables
- Terminal stud size 3/8" -16 (M10)
- Terminal stud torque 120 in-lb (13.56 Nm)
