Dobinsons 1.5" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Vigo Dual Cab 3.0L TD / 4.0L V6 with Quick Ride Rear - DSSKITMRA79 - DSSKITMRA79

$2,865.00 USD

Title Default title

Quantity

DOBINSONS PRODUCTS MAY SHIP DIRECTLY FROM DOBINSONS. CONTACT US REGARDING AVAILABILITY AND LEAD TIMES BEFORE PURCHASING

3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
20 Stage Low Speed Compression - For creepy crawling and cornering
15 Stage Rebound - Control your coils, prevent bucking
50mm CNC Machined High Flow Billet Aluminium Race Piston
3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
Upgraded 3 Stage FKM-HNBR Sealing System
TSUGAMITM CNC machined components for precise tolerances
ParkerTM Braided High Pressure Hoses
5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
T6 6061 Height Adjustable Spring Seat
Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
60mm Full 6063 aluminum remote reservoir
Lightweight CNC Machined Low Friction floating piston
High Quality O.E.M. Grade Natural Rubber Bushings
Single Piece Lower Leg
EDP Surface Protection
Direct Bolt-On Design
CNC TIG Precision Welded Body End Mounts
Fully Rebuildable Design

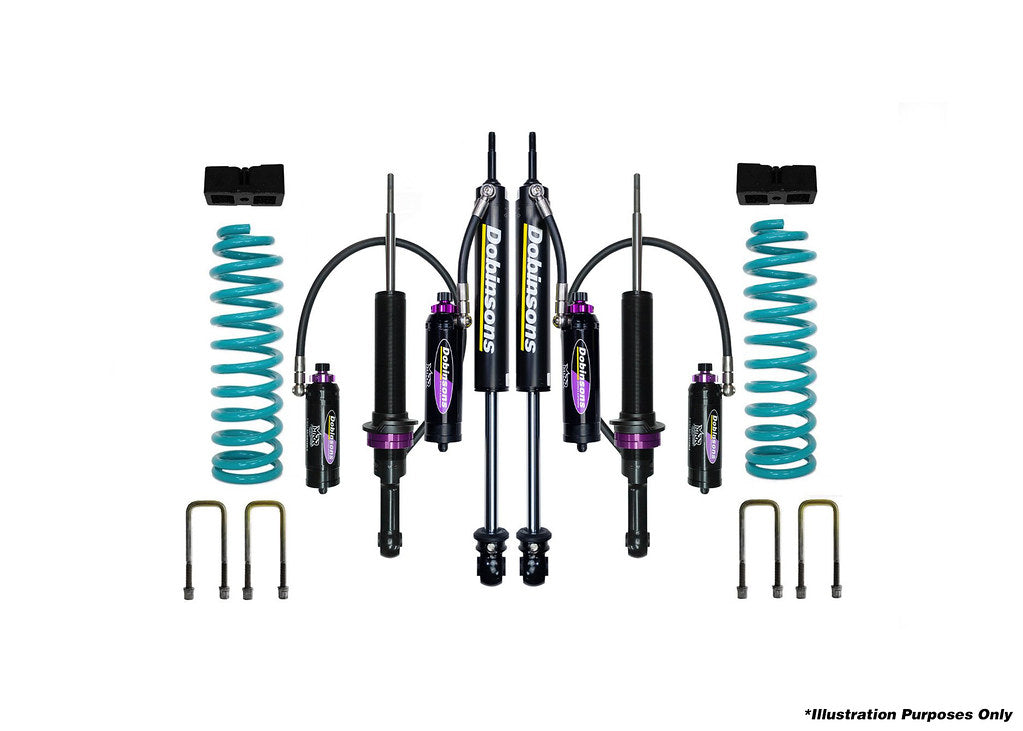

Includes 2 Front Struts, 2 Rear Shocks, 2 Front Coil Springs (a pair), Rear Spacer Blocks and U-Bolts
Rear Quickride lift blocks and U bolts lift 1.25 or 2 inches only no extra weight.
If you have a 2.5 diesel or 2.7L gas engine consult dobinsons for the propper lift.

Strut Assembly Video
