Dobinsons Spring & Suspension

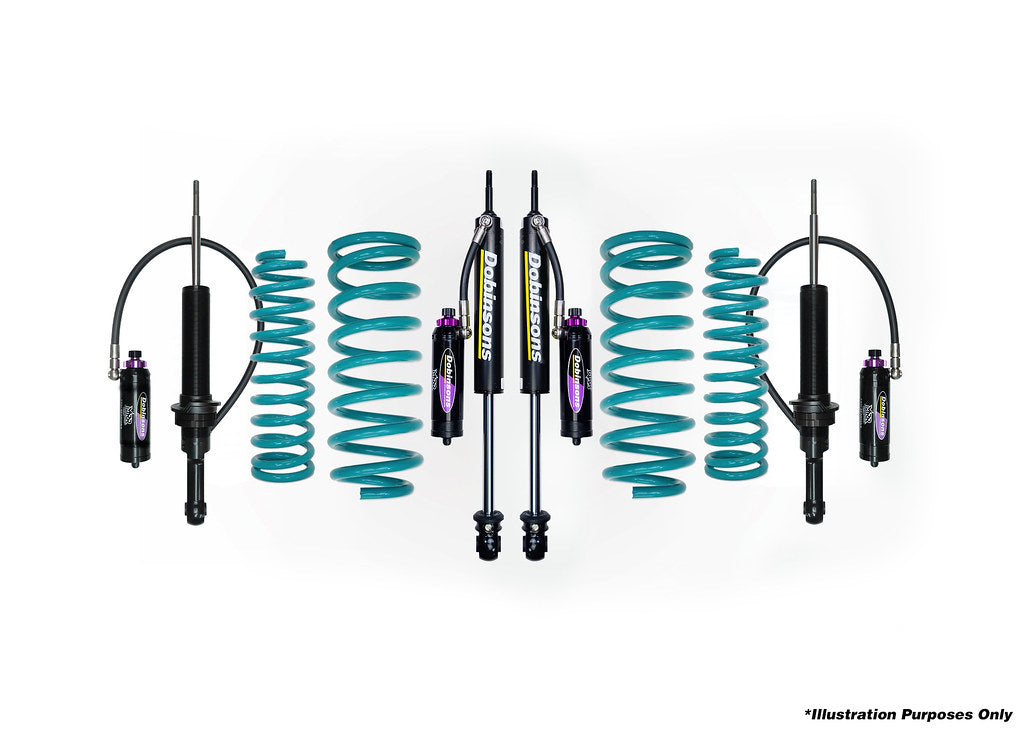

Dobinsons 1" to 3.5" MRR 3-way Adjustable Lift Kit Toyota TOYOTA LANDCRUISER PRADO 120 4x4 2003-2009 - DSSKITMRA041 - DSSKITMRA041

Dobinsons 1" to 3.5" MRR 3-way Adjustable Lift Kit Toyota TOYOTA LANDCRUISER PRADO 120 4x4 2003-2009 - DSSKITMRA041 - DSSKITMRA041

$2,970.00 USD
Title

DOBINSONS PRODUCTS MAY SHIP DIRECTLY FROM DOBINSONS. CONTACT US REGARDING AVAILABILITY AND LEAD TIMES BEFORE PURCHASING

  • Front Coil Spring Specs
    • C59-300 - 1" lift, Stock front end load
    • C59-302 - 2" lift, Stock front end load
    • C59-314 - 2.5" lift, Stock front end load
    • C59-350 - 2" lift, 110-220LBS front end load
    • C59-352 - 2.5" lift, 110-220LBS front end load
  • Rear Coil Spring Specs
    • C59-323 - 0.5" lift, Stock rear end
    • C59-599 - 1" lift, Stock rear end
    • C59-505 - 1.5" lift, Stock rear end load
    • C59-325 - 2" lift, Stock rear end load
    • C59-327 - 2" lift, 200-400LB heavy rear load weight
    • C59-329 - 2" lift, 600-800lbs heavy rear load weight
    • C59-331 - 2" lift, 900-1000lbs super heavy rear load weight
    • C59-675V - 2" Stock Load (Variable Rate, Long Travel)
    • C59-677V - 2" 400lb Load / 3" Stock Load (Variable Rate, Long Travel)
    • C59-701V - 2" 600lb Load / 3" 200lb Load (Variable Rate, Long Travel)
    • C59-749V - 2" 800lb Load / 3" 400lb Load (Variable Rate, Long Travel)
    • C59-849V - 2" 1000lb+ Load / 3" 600lb Load (Variable Rate, Long Travel)
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design
  •  ***2.5" or more of lift, new UCA's are recommended***

Front Strut Assembly Instructions

Strut Assembly Video
