Ford Super Duty (11-16) S8 30 inch Grille Mount Kit Baja Designs

Ford Super Duty (11-16) S8 30 inch Grille Mount Kit Baja Designs

$0.00 USD

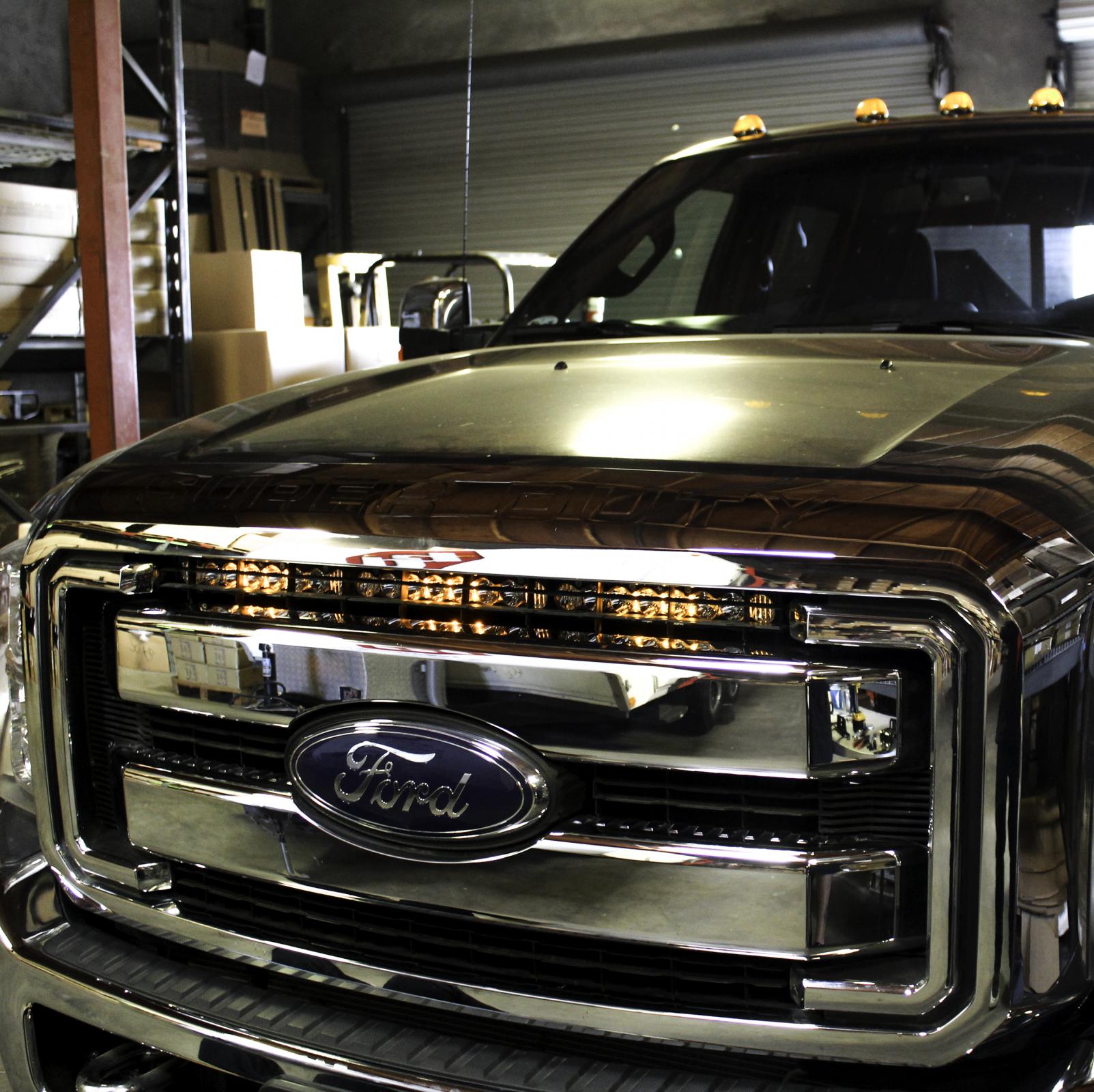

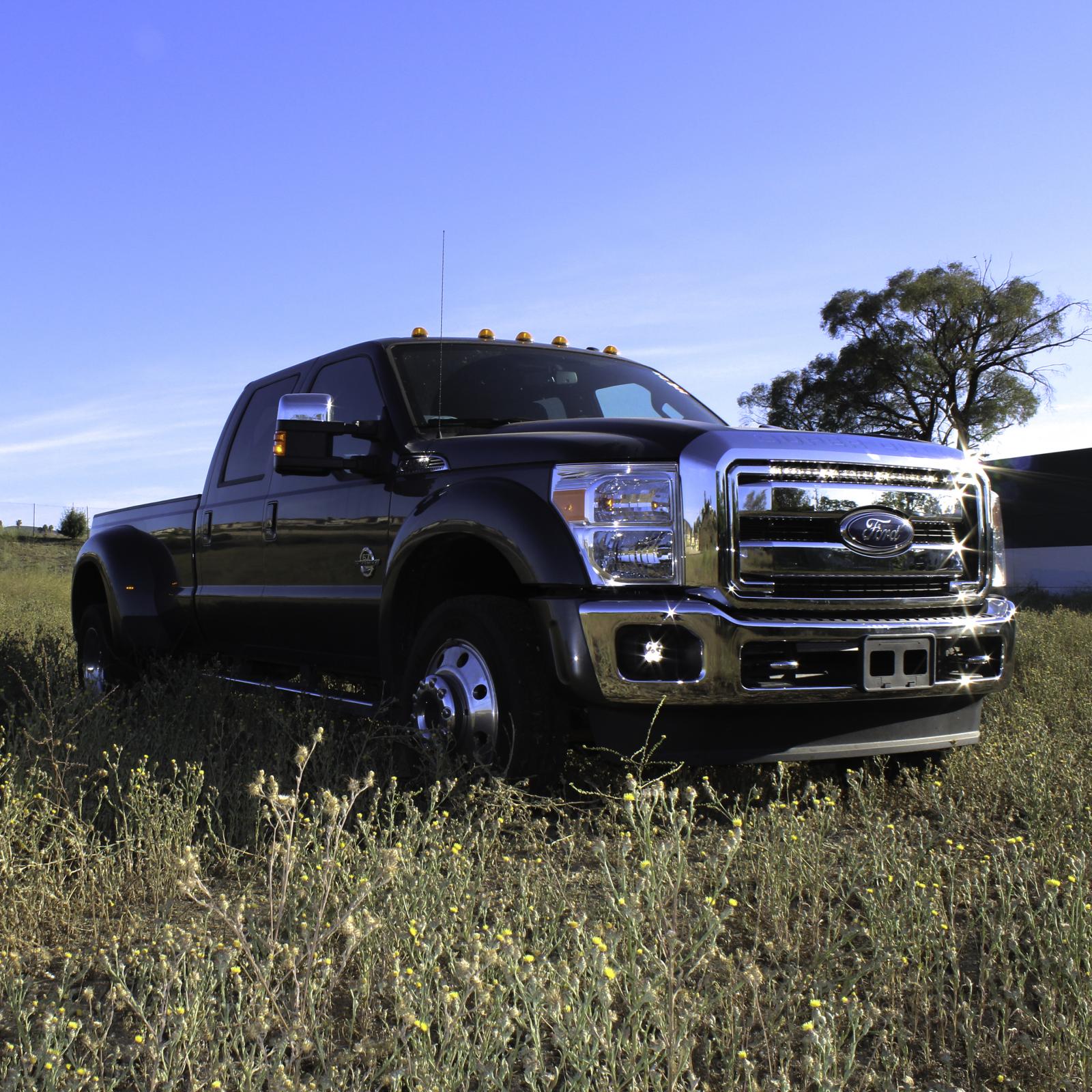

Set your Ford Super Duty apart from the rest with Baja Designs LED S8 Grille Kit. Our Ford Super Duty S8 Grille Kit has been specifically designed for 2011-2016 Ford Super Duty models giving you that clean OEM look allowing for easy installation of one 30 inch S8 LED Light Bar.

This mount kit also comes equipped with a Ford specific upfitter wiring harness which allows you to use factory switches.

Baja Designs Features:

  • Satisfactions Guarantee -30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock- Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 19,050 Utilizing 24 Cree LEDs
  • Wattage/Amps: 180W / 12A
  • Dimensions: 30 inch x 3 inch x 1.6 inch
  • Weight: 6.5 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)

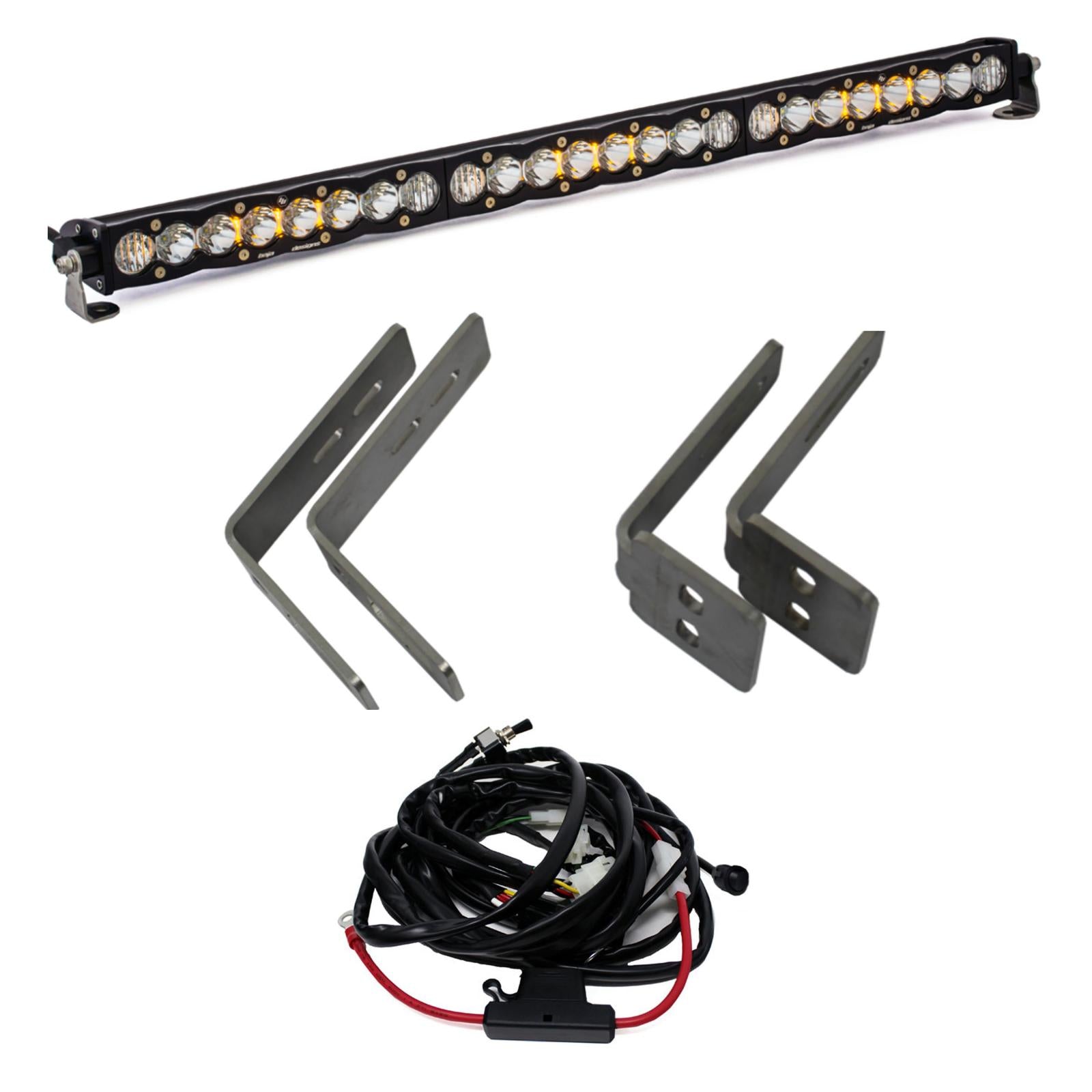

Includes:

  • x2 2011-2016 Ford Super Duty Mounting Brackets
  • x1 S8 30 inch LED Light Bar
  • Ford Upfitter Wiring Harness
  • Hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
