Garmin PowerSwitch
Garmin PowerSwitch
THE APP
Use the Garmin PowerSwitch app on your compatible1 Garmin navigator or smartphone to control all your accessories from your touchscreen device.
WIRELESS SWITCH CONTROL
The Garmin PowerSwitch digital switch box uses BLUETOOTH® wireless connectivity to program and operate your accessories from compatible1 Garmin navigators or smartphones.
MORE CONTROL
Control up to four of your Garmin PowerSwitch devices from your compatible1 Garmin navigator or smartphone.

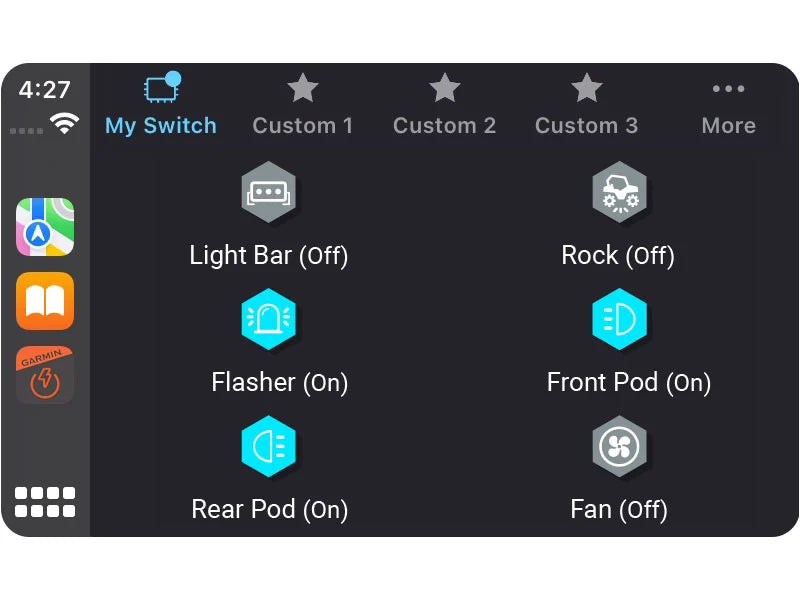

IN-DASH CONNECTIVITY
Garmin PowerSwitch support for the Apple CarPlay® software feature and Android Auto™ connectivity (enabled via this app) lets you seamlessly view and control switching functions from your vehicle’s compatible in-dash infotainment display.
INSTALL MADE SIMPLE
Hassle-free installation lets you connect up to six accessories to one Garmin PowerSwitch box. There’s no interference with your vehicle electronics and no need to cut holes in your dashboard or route wires through the firewall.
COMPACT FOR EASY MOUNTING
The compact 5” x 3” x 1” form factor gives you plenty of flexible mounting options on all types of vehicles, ranging from side-by-sides, UTVs and ATVs to off-roading 4x4s and snowmobiles.
CUSTOMIZE SWITCHES
Create custom virtual switch panels with labels, icons and channel groups on the display as well as controls for dimming and flashing of lighting systems. It’s the simple way to control light bars, rock lights and more.
AMPLE OUTLETS
With a total of six circuits rated at up to 30 amps each, you can power and control all types of 12-volt accessories from one Garmin PowerSwitch digital switch box (not intended for controlling motors with reverse polarity).
CONTROL INPUTS
Includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle.
LIGHT IT UP
The Garmin PowerSwitch system makes it easy to add all types of exterior lighting packages to your vehicle — everything from light bars and fog lights to emergency flashers and rear and rock lights.
POWER YOUR ADVENTURES
In addition to vehicle lights, you can tap into Garmin PowerSwitch with all types of useful gear: Comm radios, refrigerators, air compressors or virtually anything that can run with 12-volt power.
SPECS
General |
|
DIMENSION | 4.9”W x 1.3”H x 3.0”D (12.5 x 3.2 x 7.5 cm) |
---|---|
WEIGHT |
10 oz (283 g) |
WATER RATING | IPX7 |
Digital Switching Features |
|
NUMBER OF SWITCH OUTPUTS | 6 |
---|---|
MAX AMPS PER SWITCH OUTPUT | 30 amps |
MAX AMPS TOTAL | 100 amps |
NUMBER OF HARDWIRE INPUTS | 2 |
MAX NUMBER OF CONTROLLERS* FOR PAIRING WITH A POWERSWITCH DEVICE *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY) |
4 |
MAX NUMBER OF POWERSWITCH DEVICES FOR PAIRING WITH A CONTROLLER* *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY) |
4 |
