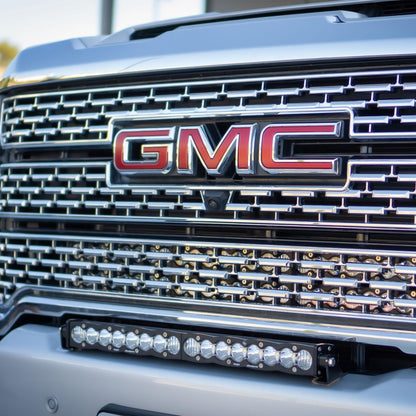

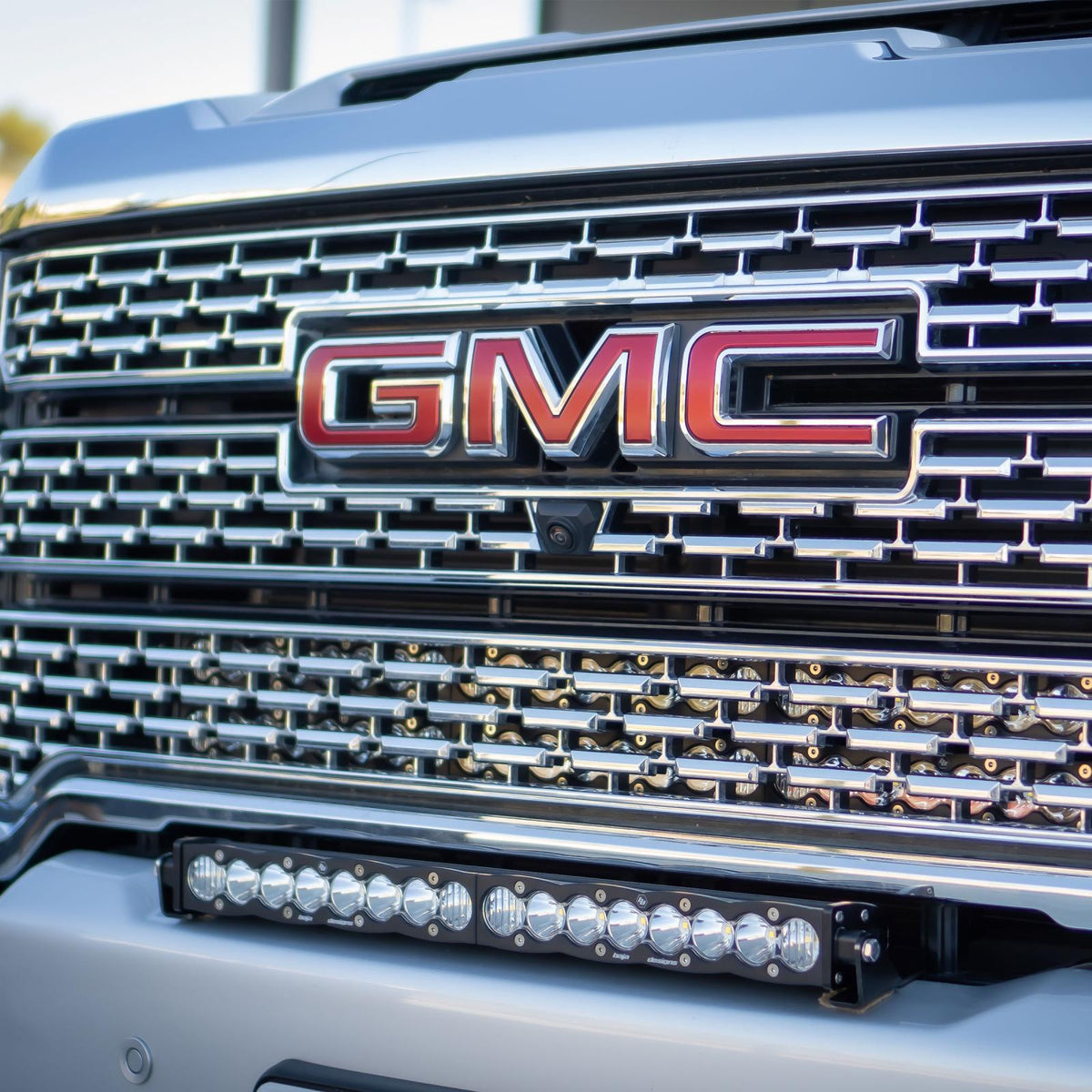

GMC (20-On) 2500/3500 20 Inch S8 Bumper Kit Baja Designs

GMC (20-On) 2500/3500 20 Inch S8 Bumper Kit Baja Designs

$0.00 USD

Our GMC, 1500 (19-On), 2500 and 3500 (20-On) kits were designed specifically to keep a low profile while allowing for maximum performance. The kit includes mounts that fit into factory locations without cutting or trimming and includes both the wiring and a 20 inch S8 Driving / Combo for an easy install.

With the S8 you will be able to utilize its back lit feature giving a differentiating look from other trucks!

Baja Designs Features:

  • Satisfactions Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 Percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 19,050 Utilizing 24 Cree LEDs
  • Wattage/Amps: 180W / 12A
  • Dimensions: 30 Inch x 3 x 1.6 Inch
  • Weight: 6.5 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)

Kit Includes:

  • S8 30 inch Driving Combo
  • Wiring
  • Hardware
  • Brackets

Application:

GMC, 2500 and 3500 20-On

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
