Description
Cable seal drill-tube sizing
Use a drill tube within ±0.02 inch (±0.508 mm) of the measured cable diameter. Choose the closest available size within this range. If none of the supplied 6, 8, 10 or 12 mm tubes qualifies, use a matching-size tube. Keep at least 0.125 inch (3.175 mm) of rubber between holes and at the outside edge.

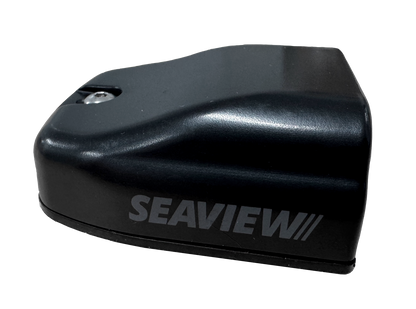

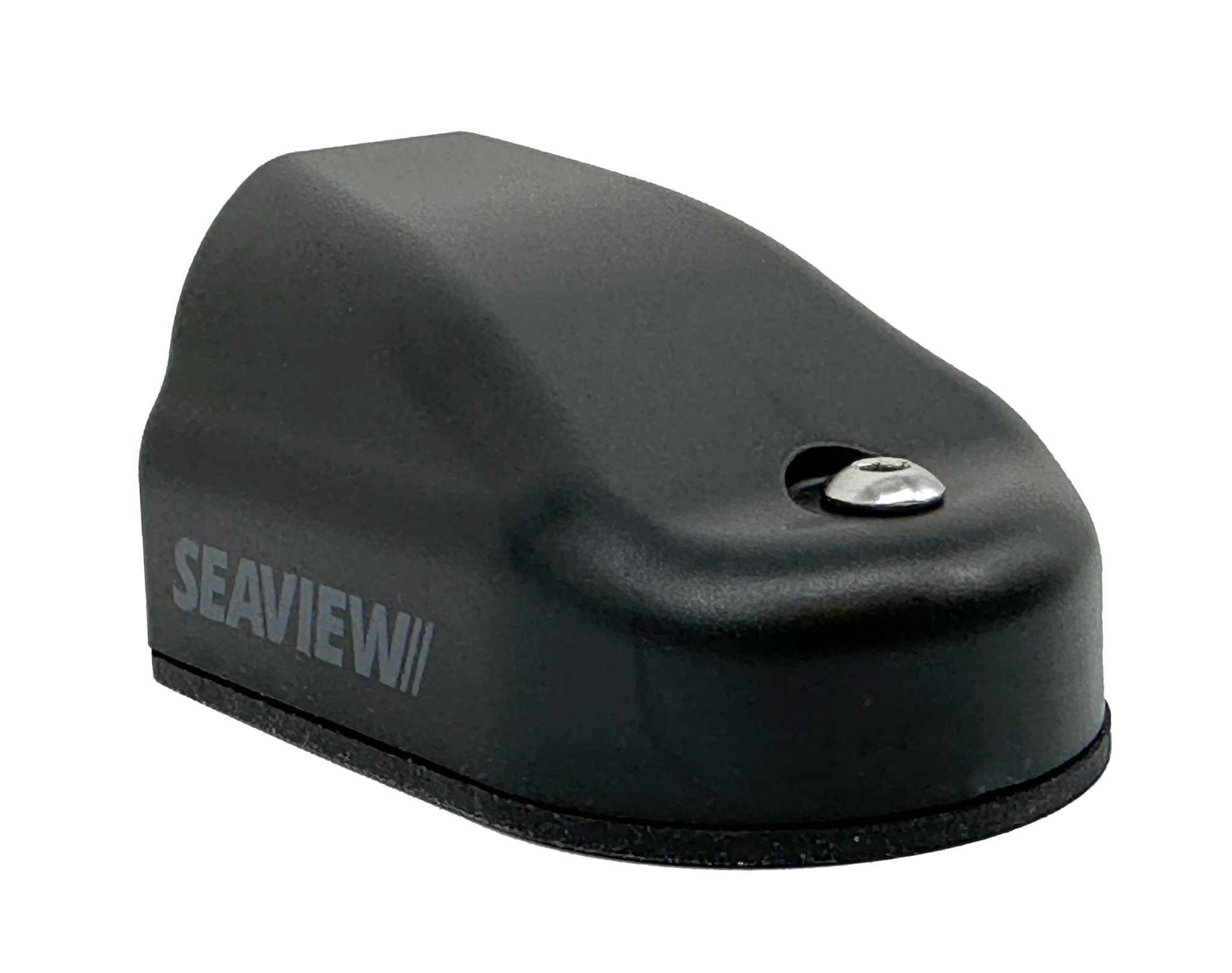

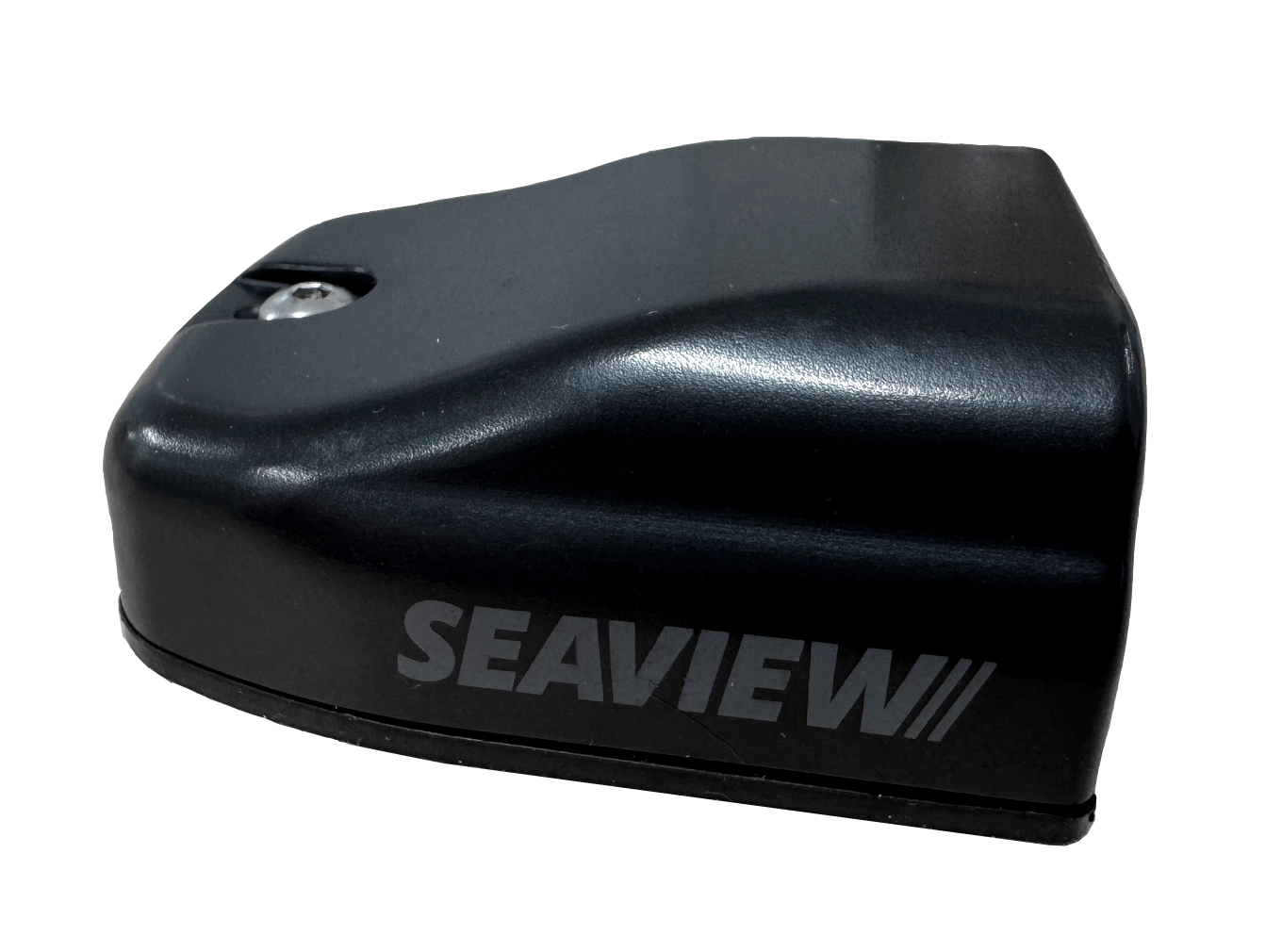

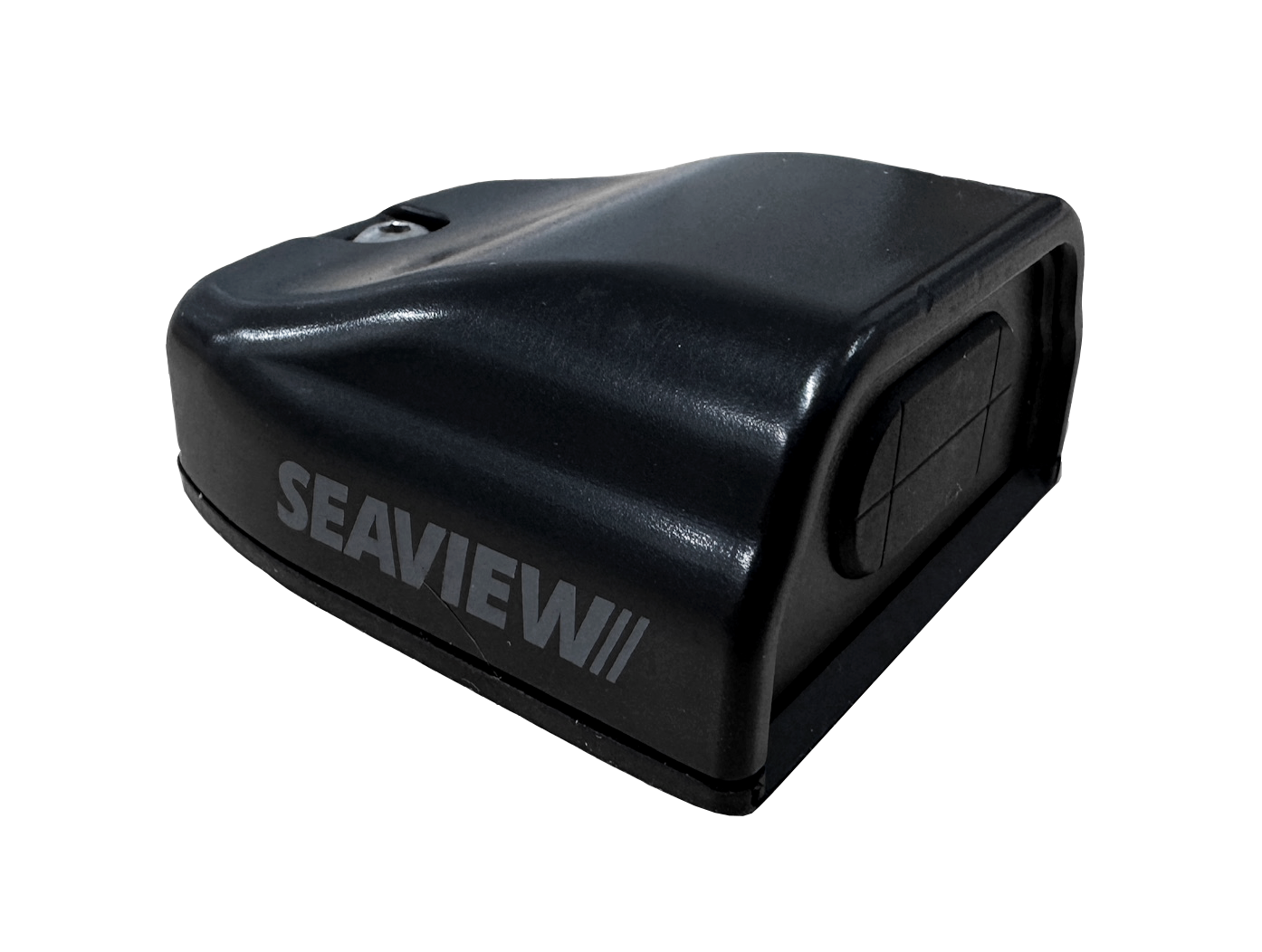

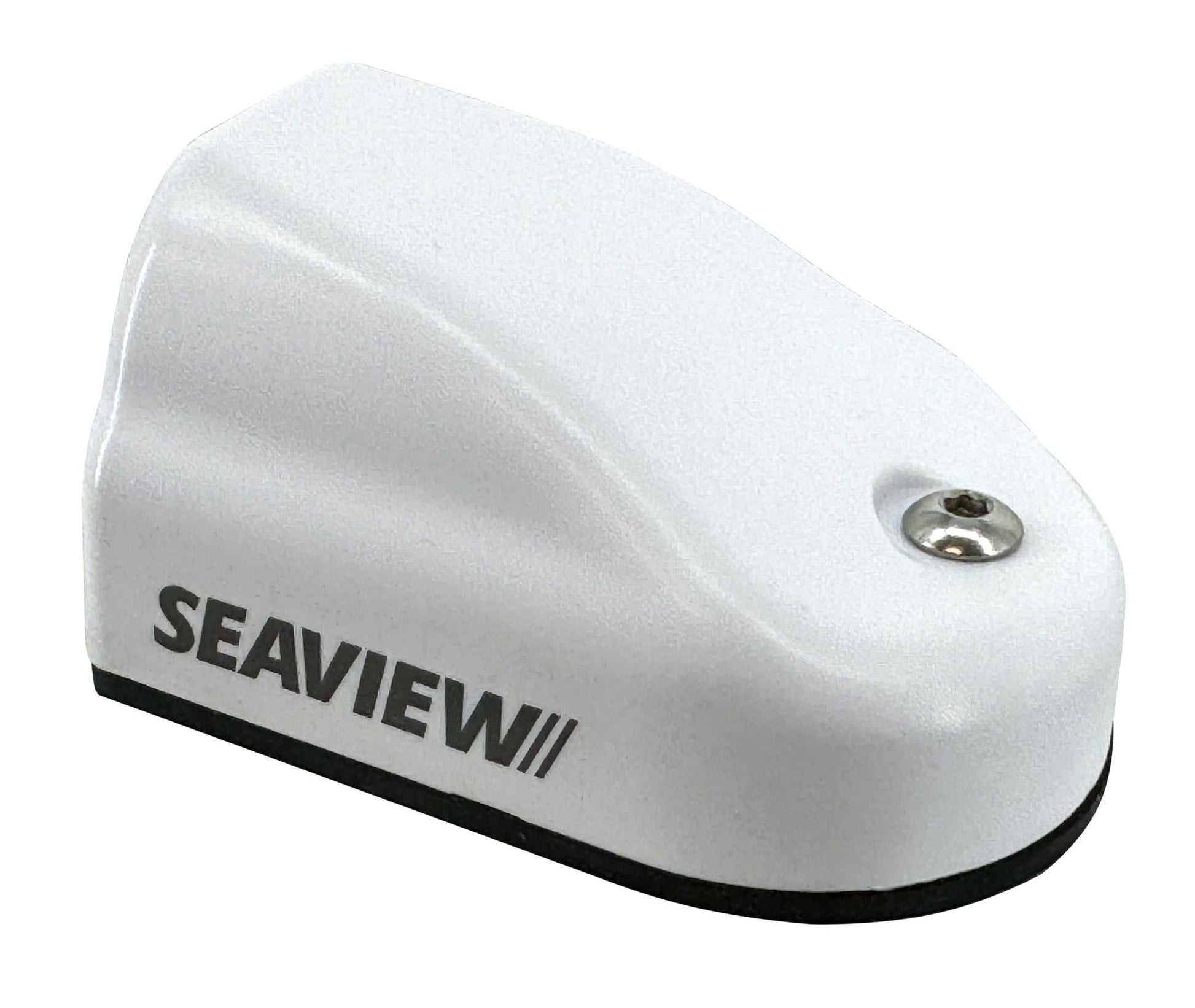

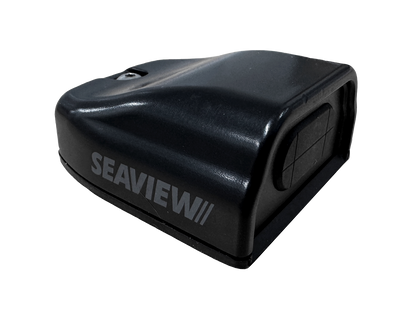

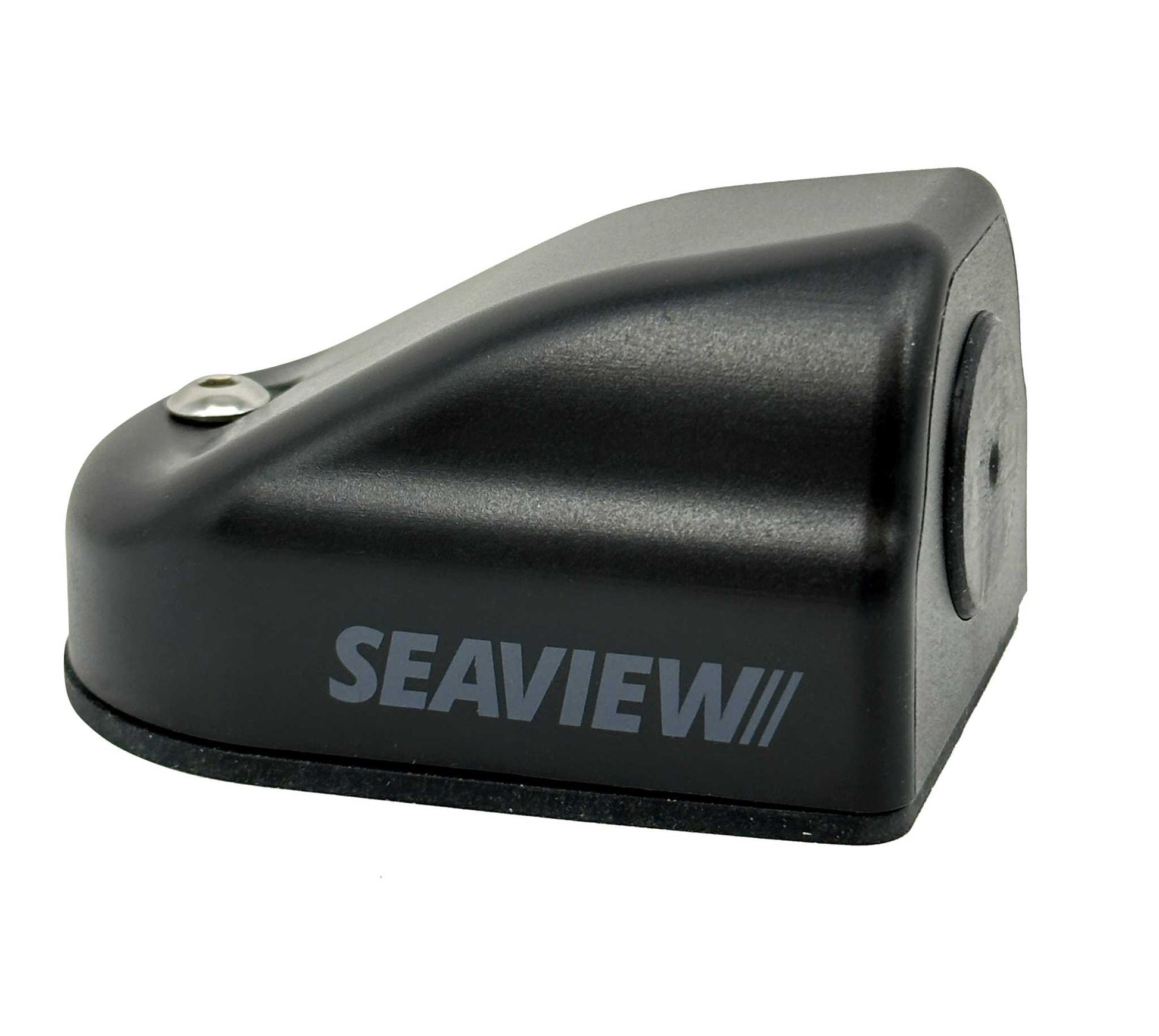

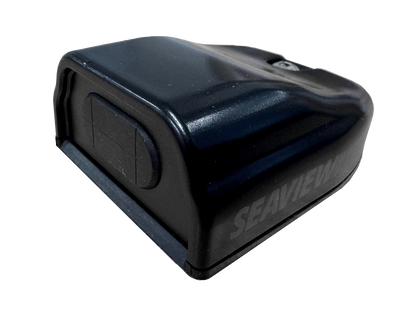

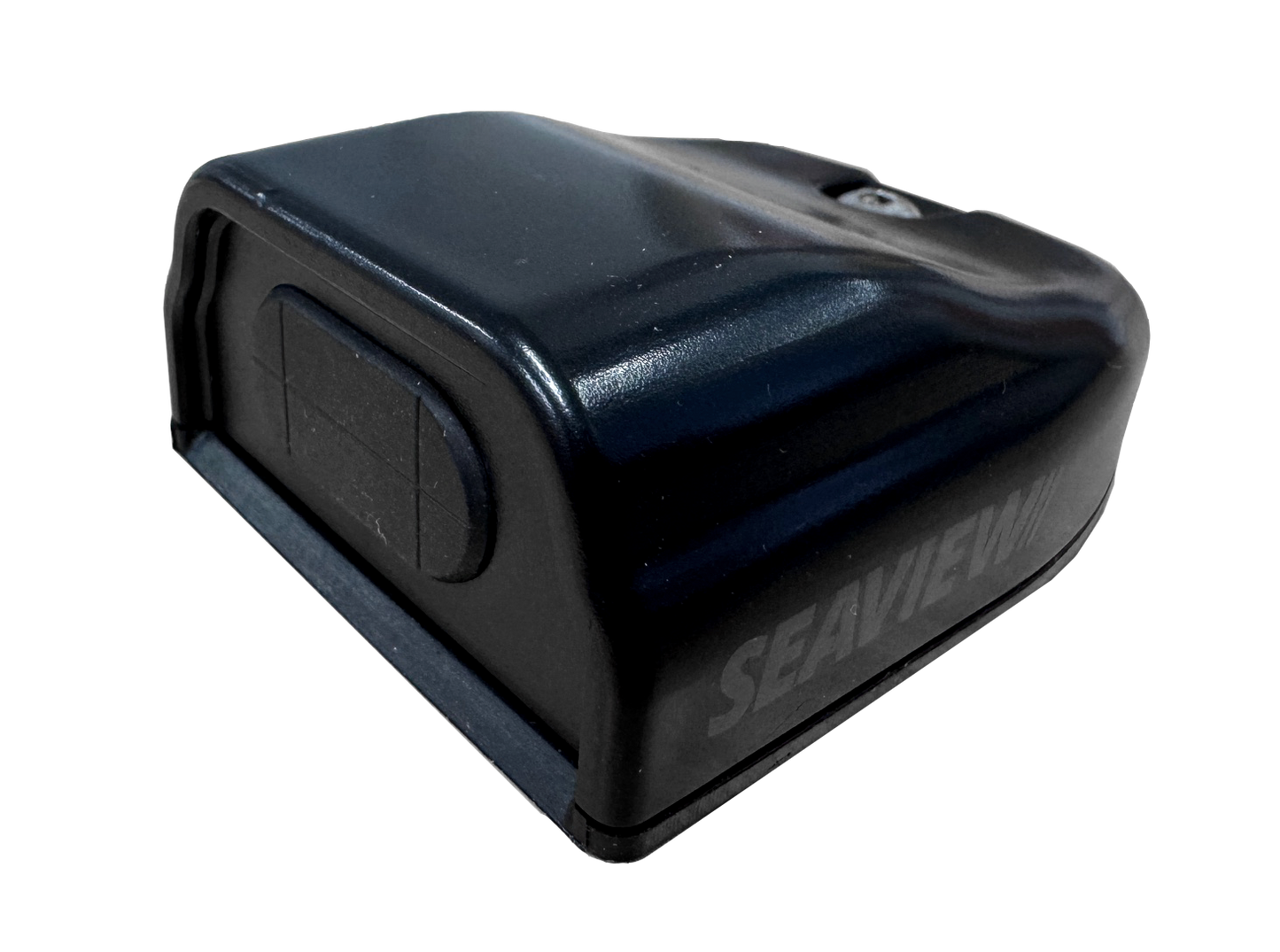

The Seaview horizontal cable seals (90 degree cable seal) are a streamlined, waterproof seal that has a horizontal orientation.

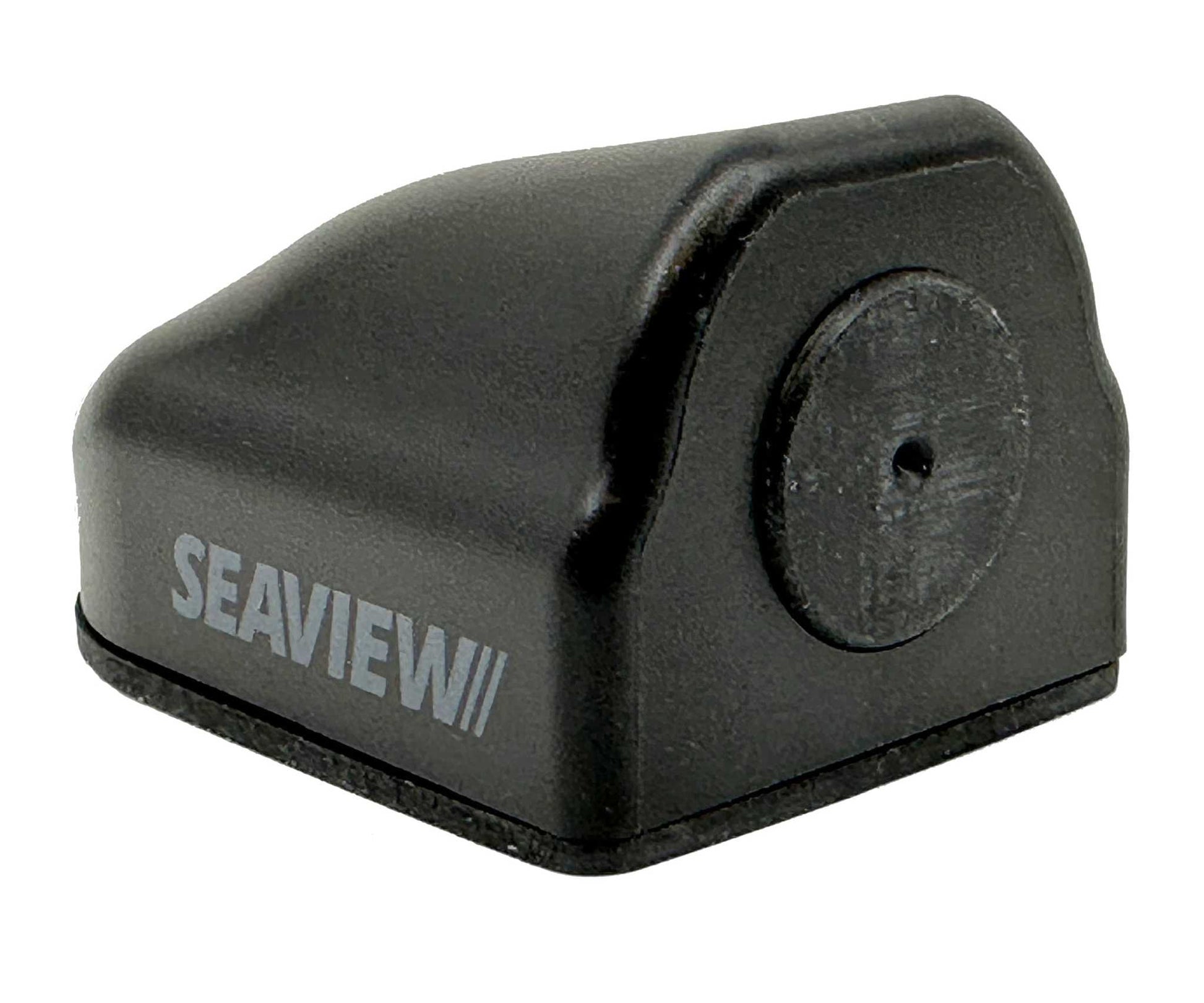

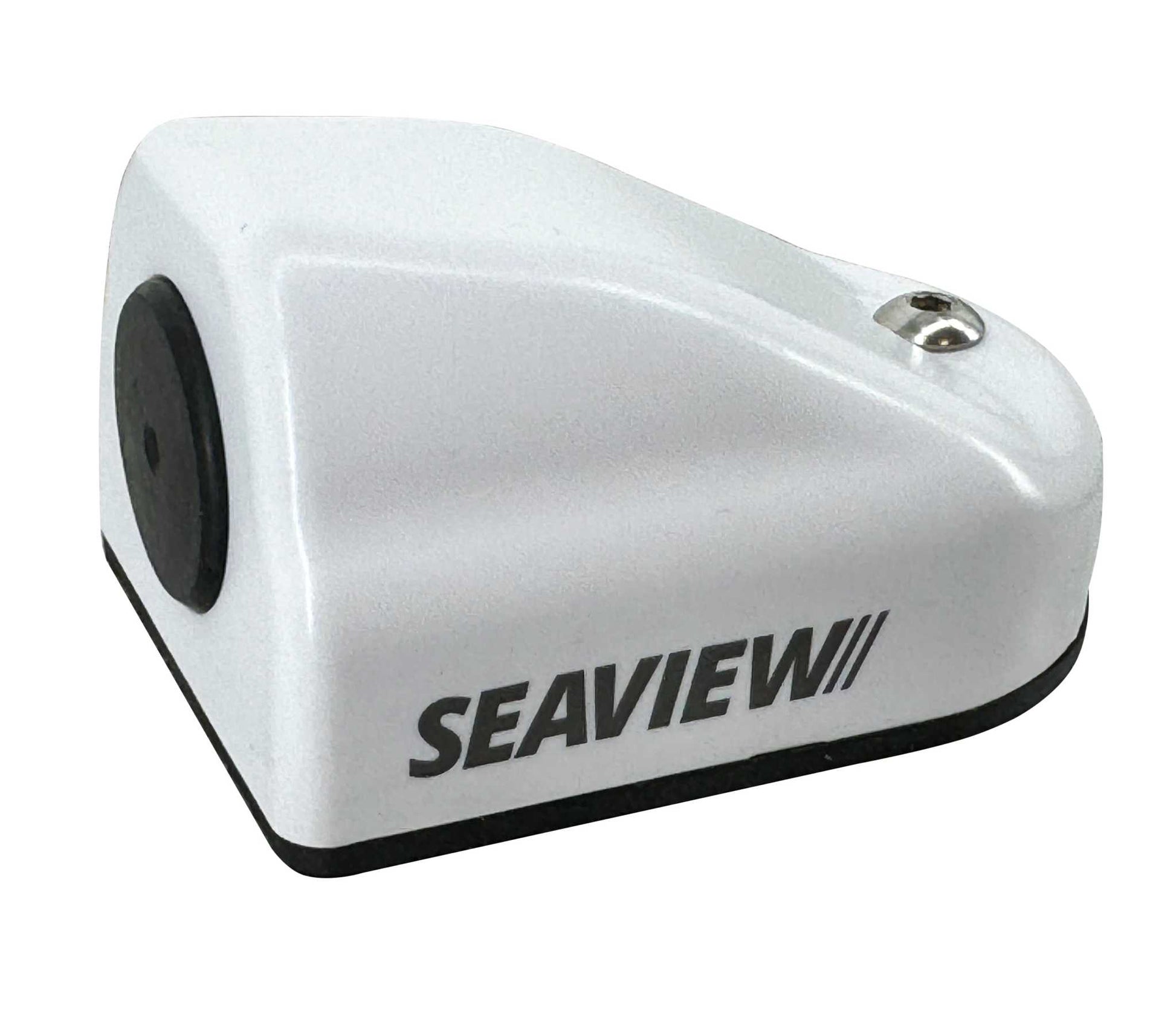

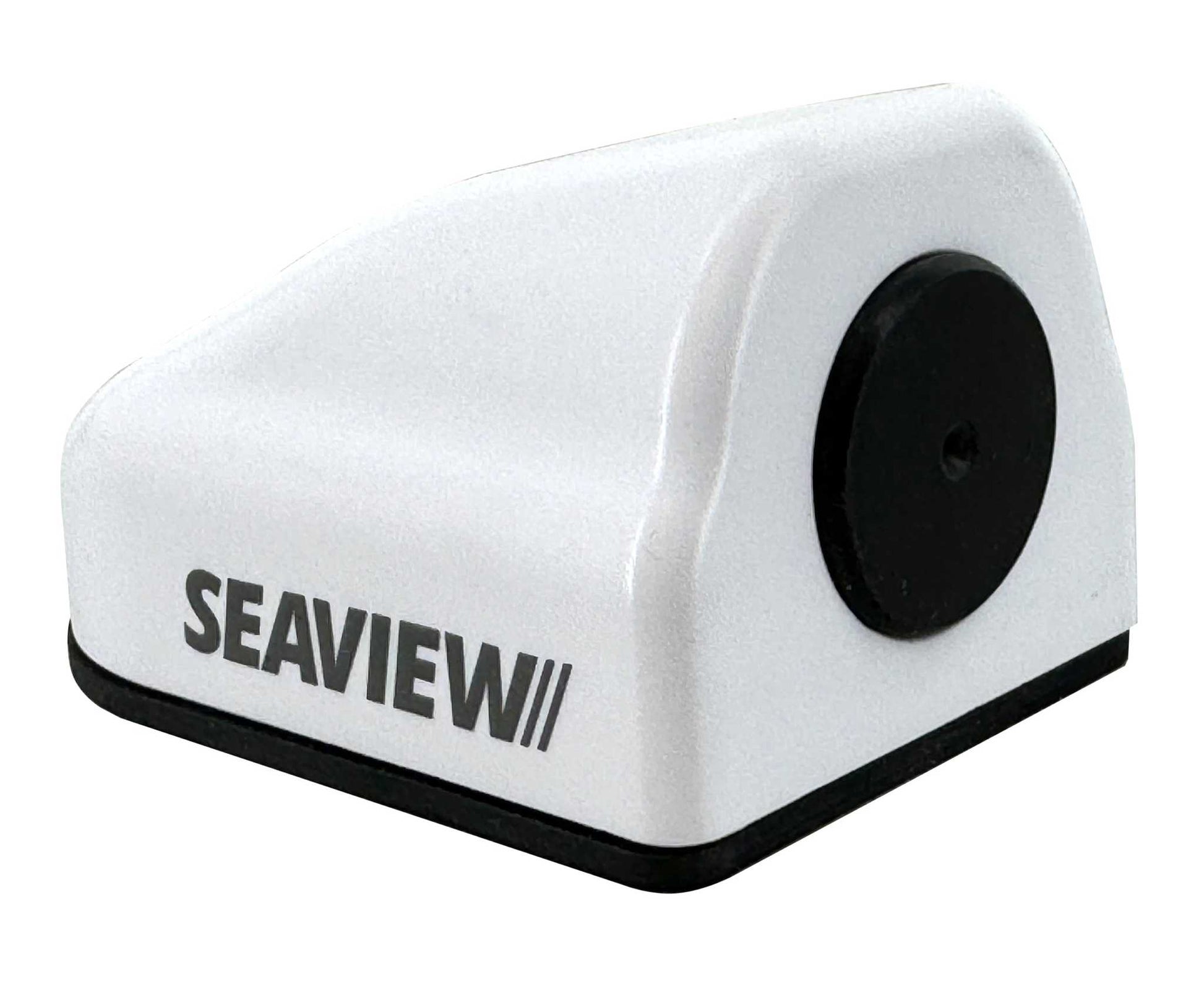

The CG2090 series cable seal fits cable diameters up to 0.53” (13.5mm). Max connector size approx. 0.375"-0.5" (9.5mm-12.7mm) depending on connector length and type.

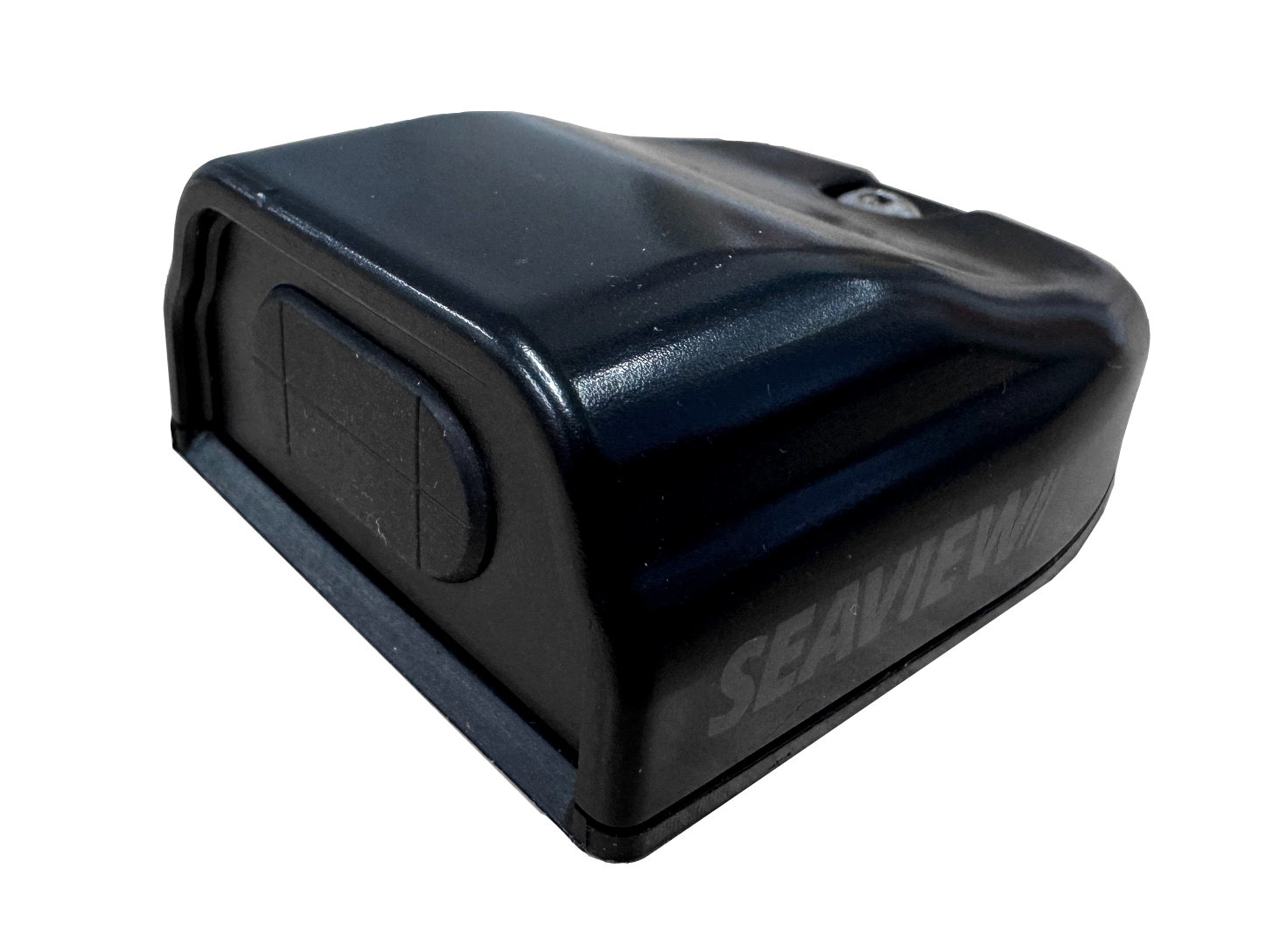

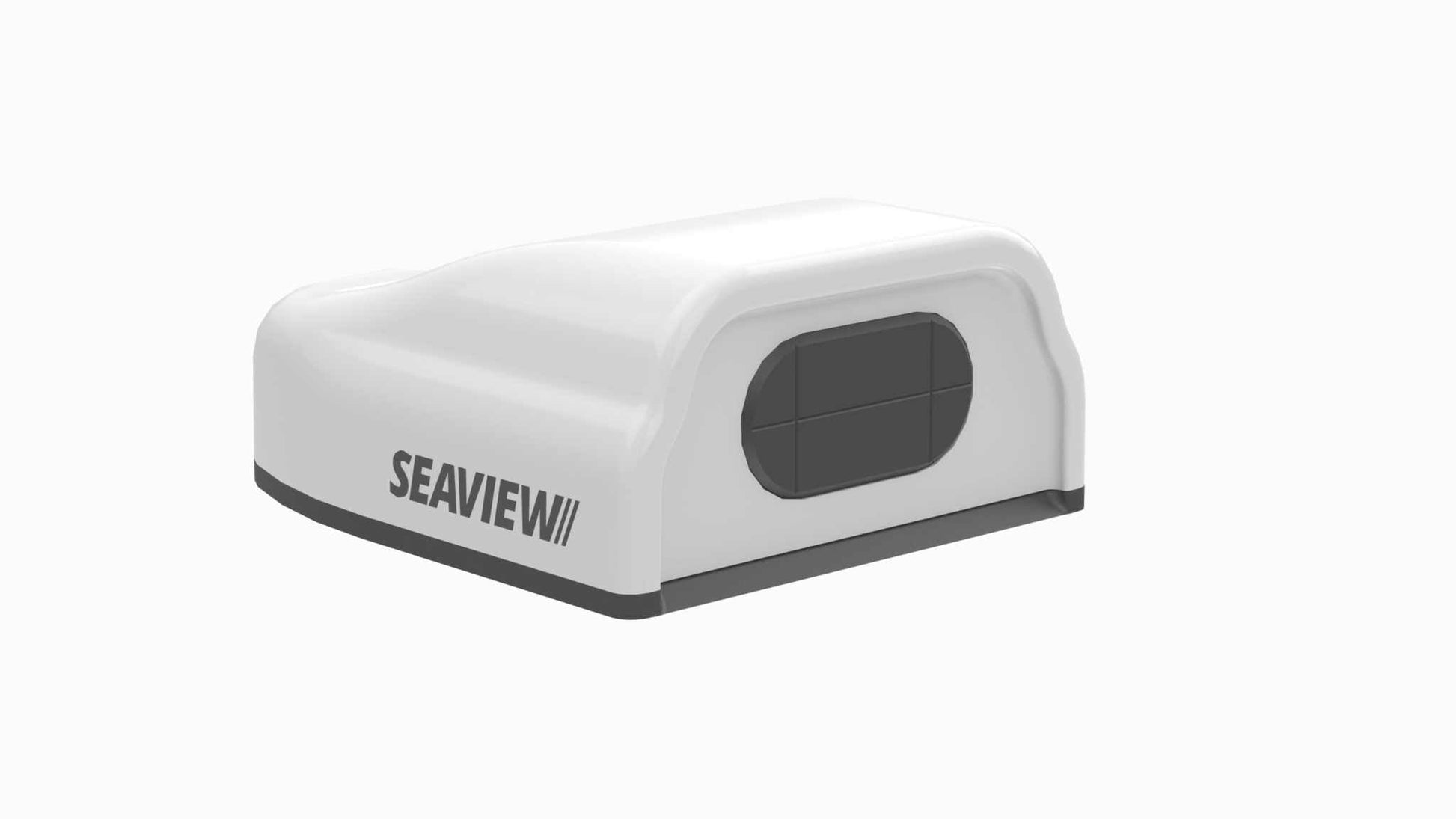

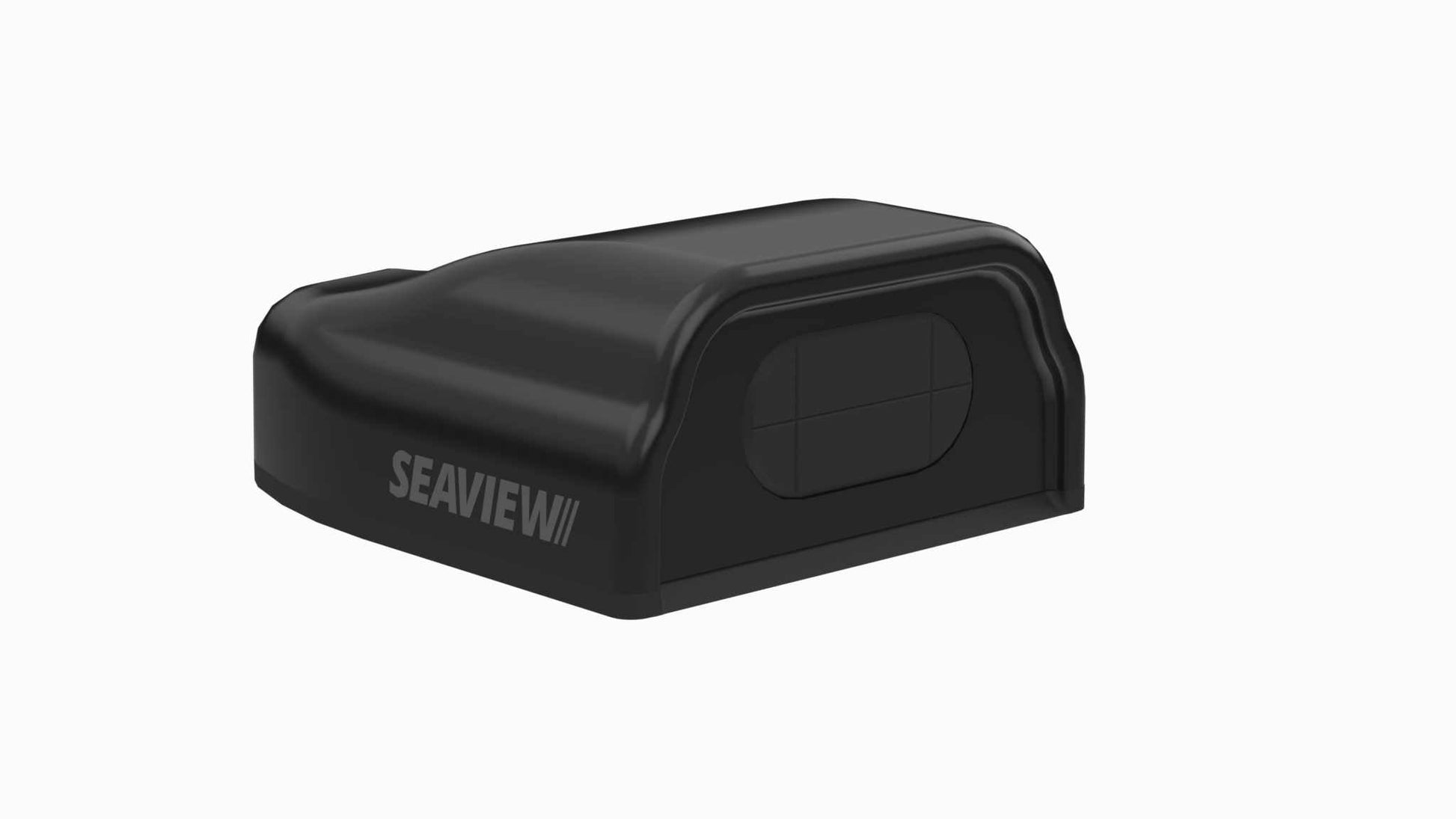

The CGM90 series cable seal fits cable diameters up to 0.25” (6.35mm). Max connector size approx. 0.3125"-0.375" (7.94mm-9.53mm) depending on connector length and type.
-

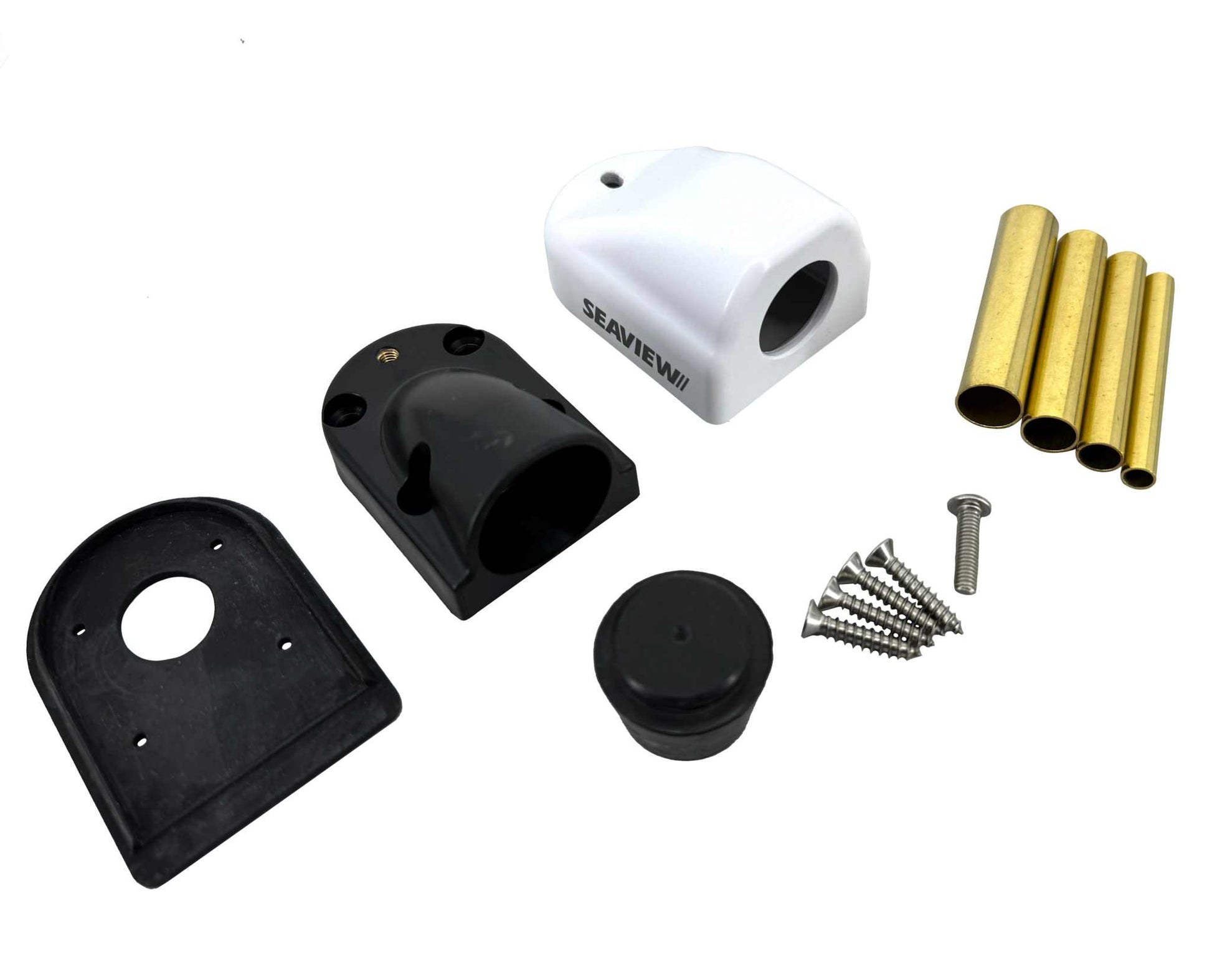

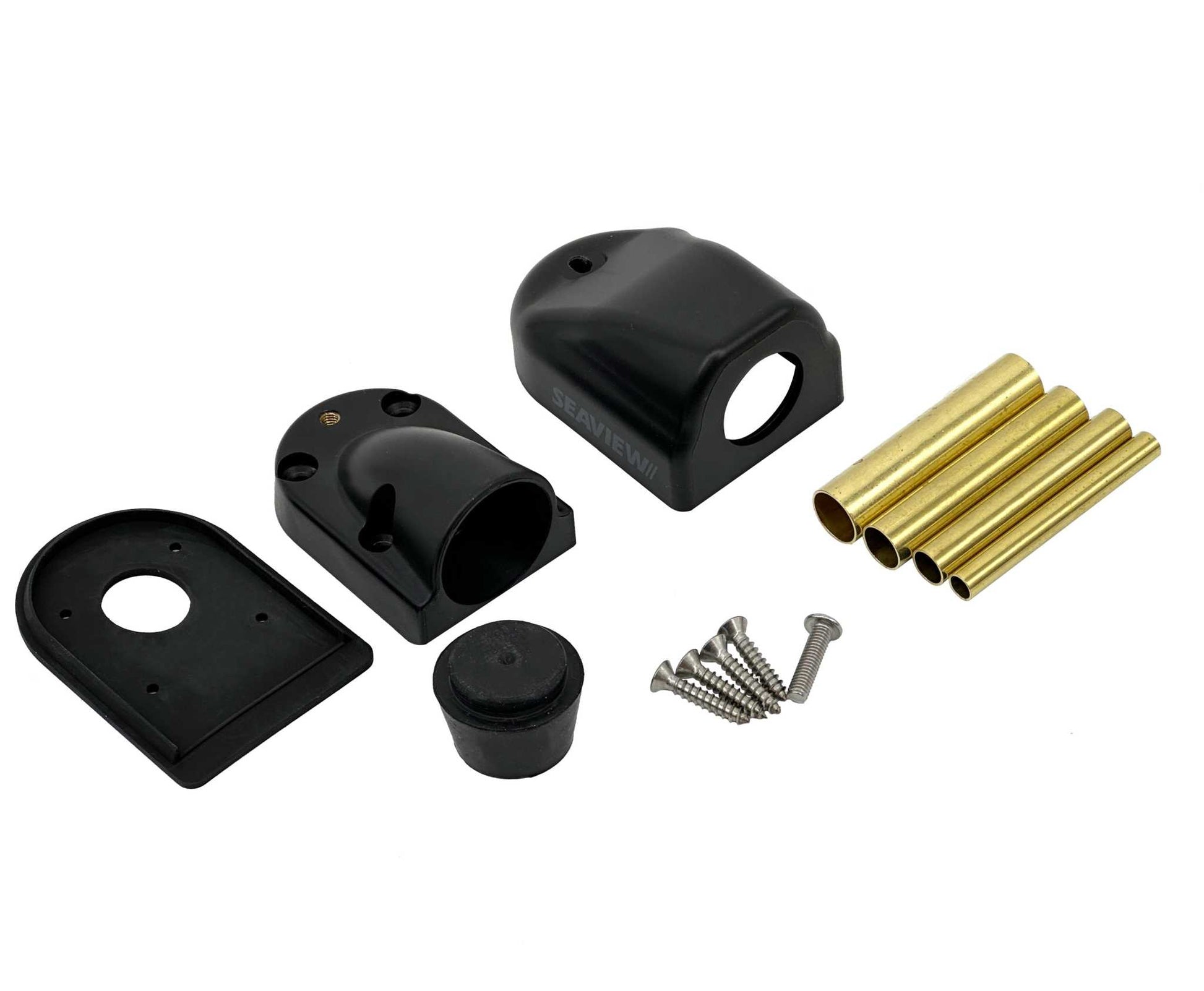

These have a plastic housing (white or black) that is strong and impact-resistant with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with drill tubes allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.
These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.
-
| Seaview Part Number |
Dimensions |
| CG2090 & CG2090W |
Download |
| CGM90 & CGM90W |
Download |
-
Installation Instructions
Download the installation instructions in the chart below.
| Seaview Part Number |
Installation Instructions |
| CG2090 & CG2090W |
Download |
| CGM90 & CGM90W |
Download |
| CGM1790B & CGM1790W |
Download |
