XJ 8.0 Inch Pro Series 3 Link Long Arm Lift Kit W/Rear Coil Conversion (3.00 Inch Axle Tube Size)

Clayton Off Road Inc. builds the ultimate 3 link front, 4 link rear suspension system. We start by using pro series arms. Pro series arms feature forged johnny joints at both ends for maximum flex and adjustability. We use the same 3 piece cross member used in all our long arm kits for easy access to your transmission. The new 3 link mount comes welded to this 3 piece cross member along with a 1/4 uni-body brace which wraps around the unibody for added strength. If you are using a stock D30 front axle you can use the optional 3 link bridge or truss. This gives you a very strong mounting location to attach the top 3 link axle mount. This mount will NOT work on any aftermarket axle. We will include a standard 3 link mount which you can to your axle or bridge depending on our axles configuration. Another advantage is our HD trackbar and double sheer drop bracket. The trackbar bracket is laser cut, CNC bent, and put the large 2.5 inch forged Johnny Joint in double sheer, allowing for maximum flex. The trackbar uses a HD bushing which uses a grade 8, 9/16s bolt at the axle end. When using the Pro-Series lower arms, we highly recommend the Heavy duty lower control arms, which have a skid plate to protect the lower johnny joint. The rear part of the kit is designed to build off of our front XJ long arm cross member.

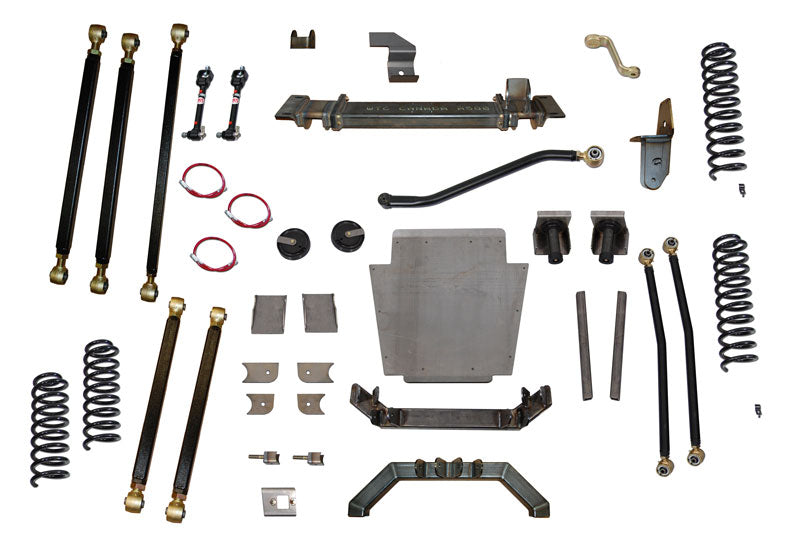

The kit consists of a new weld in cross member, Вј flat skid plate, 2 support rails, complete high clearance axle bracket kit, new upper coil buckets, 1 new upper shock bracket and upper and lower adjustable long arms. This kit is intended for the more experienced customer or high end fab shop because it requires welding, cutting, and modifying the unibody frame rails. A custom exhaust will need to be rerouted, and depending on your model year you may need to move your e-brake cables. Basically this is not an easy kit to install, but its benefits are amazing. You get a great ride because of the change from leaf springs to coil springs. The 4 link suspension eliminates any axle wrap issues you may have had with standard leaf springs. And the flex is truly amazing.

NOTE: 1. Shocks are optional and we recommend the Bilstein 5100s. 2.Welding and cutting is required to install this lift kit. 3. Custom exhaust is required. 4. Moving the e-brake bracket maybe necessary on certain models/years. 5. A SYE kit and CV style driveshaft is required.

This Part Fits:

Year	Make	Model	Submodel	Notes
1984	Jeep	Cherokee
1985	Jeep	Cherokee
1986	Jeep	Cherokee
1987	Jeep	Cherokee
1988	Jeep	Cherokee
1989	Jeep	Cherokee
1990	Jeep	Cherokee
1991	Jeep	Cherokee
1992	Jeep	Cherokee
1993	Jeep	Cherokee
1985	Jeep	Cherokee	Chief
1986	Jeep	Cherokee	Chief
1987	Jeep	Cherokee	Chief
1988	Jeep	Cherokee	Chief
1985	Jeep	Cherokee	Laredo
1986	Jeep	Cherokee	Laredo
1987	Jeep	Cherokee	Laredo
1988	Jeep	Cherokee	Laredo
1989	Jeep	Cherokee	Laredo
1990	Jeep	Cherokee	Laredo
1991	Jeep	Cherokee	Laredo
1992	Jeep	Cherokee	Laredo
1985	Jeep	Cherokee	Pioneer
1986	Jeep	Cherokee	Pioneer
1987	Jeep	Cherokee	Pioneer
1988	Jeep	Cherokee	Pioneer
1989	Jeep	Cherokee	Pioneer
1990	Jeep	Cherokee	Pioneer
1987	Jeep	Cherokee	Limited
1988	Jeep	Cherokee	Limited
1989	Jeep	Cherokee	Limited
1990	Jeep	Cherokee	Limited
1991	Jeep	Cherokee	Limited
1992	Jeep	Cherokee	Limited
1989	Jeep	Cherokee	Sport
1990	Jeep	Cherokee	Sport
1991	Jeep	Cherokee	Sport
1992	Jeep	Cherokee	Sport
1993	Jeep	Cherokee	Sport
1994	Jeep	Cherokee	Sport
1995	Jeep	Cherokee	Sport
1996	Jeep	Cherokee	Sport
1997	Jeep	Cherokee	Sport
1998	Jeep	Cherokee	Sport
1999	Jeep	Cherokee	Sport
2000	Jeep	Cherokee	Sport
2001	Jeep	Cherokee	Sport
1991	Jeep	Cherokee	Briarwood
1992	Jeep	Cherokee	Briarwood
1993	Jeep	Cherokee	Country
1994	Jeep	Cherokee	Country
1995	Jeep	Cherokee	Country
1996	Jeep	Cherokee	Country
1997	Jeep	Cherokee	Country
1994	Jeep	Cherokee	SE
1995	Jeep	Cherokee	SE
1996	Jeep	Cherokee	SE
1997	Jeep	Cherokee	SE
1998	Jeep	Cherokee	SE
1999	Jeep	Cherokee	SE
2000	Jeep	Cherokee	SE
2001	Jeep	Cherokee	SE
1996	Jeep	Cherokee	Classic
1998	Jeep	Cherokee	Classic
1999	Jeep	Cherokee	Classic
2000	Jeep	Cherokee	Classic
2001	Jeep	Cherokee	Classic
1998	Jeep	Cherokee	Limited
1999	Jeep	Cherokee	Limited
2000	Jeep	Cherokee	Limited
2001	Jeep	Cherokee	Limited
