Jeep Gladiator 1.5 Inch Triple Rate Rear Coil Springs 2020+, JT Clayton Off Road
Jeep Gladiator 1.5 Inch Triple Rate Rear Coil Springs 2020+, JT Clayton Off Road
Couldn't load pickup availability

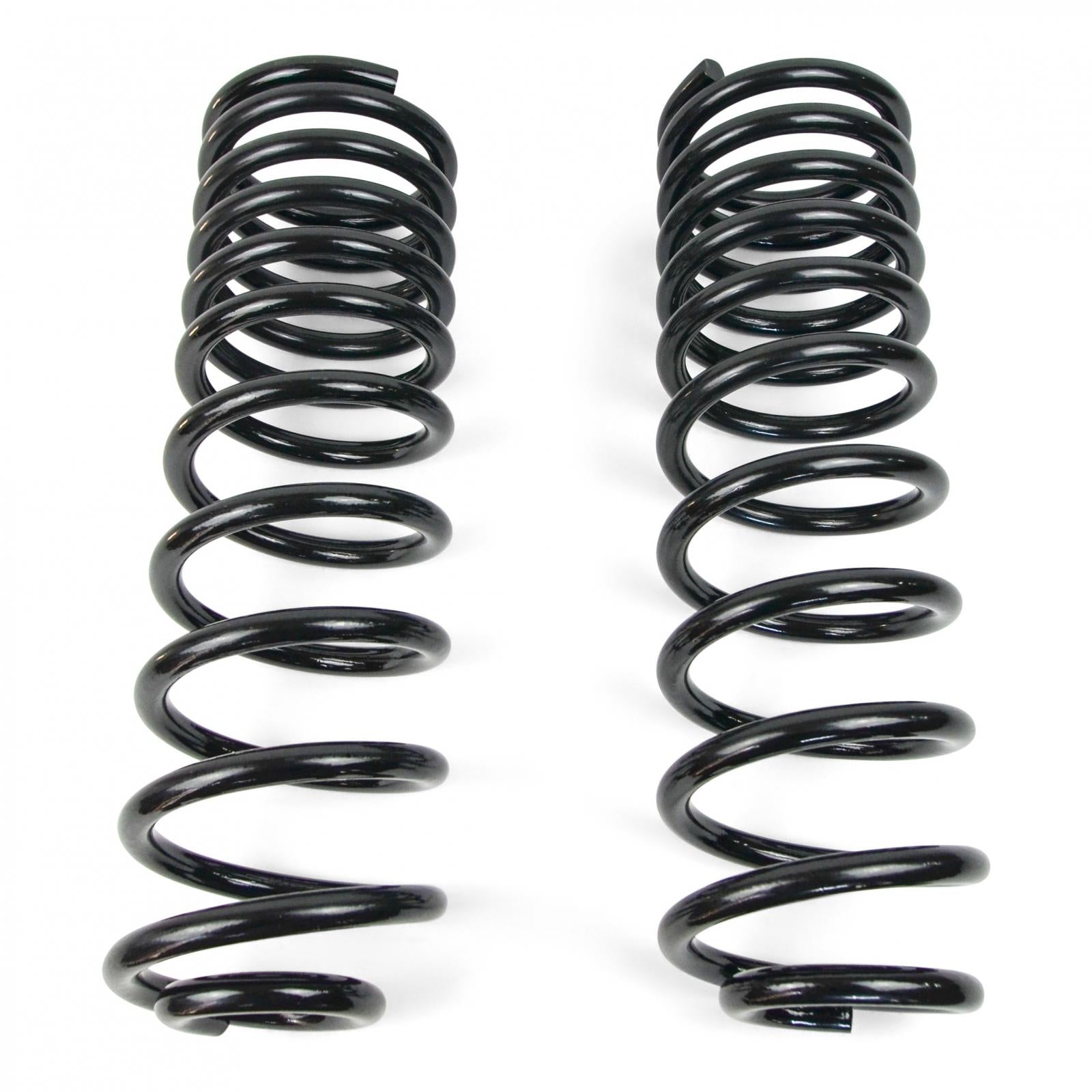

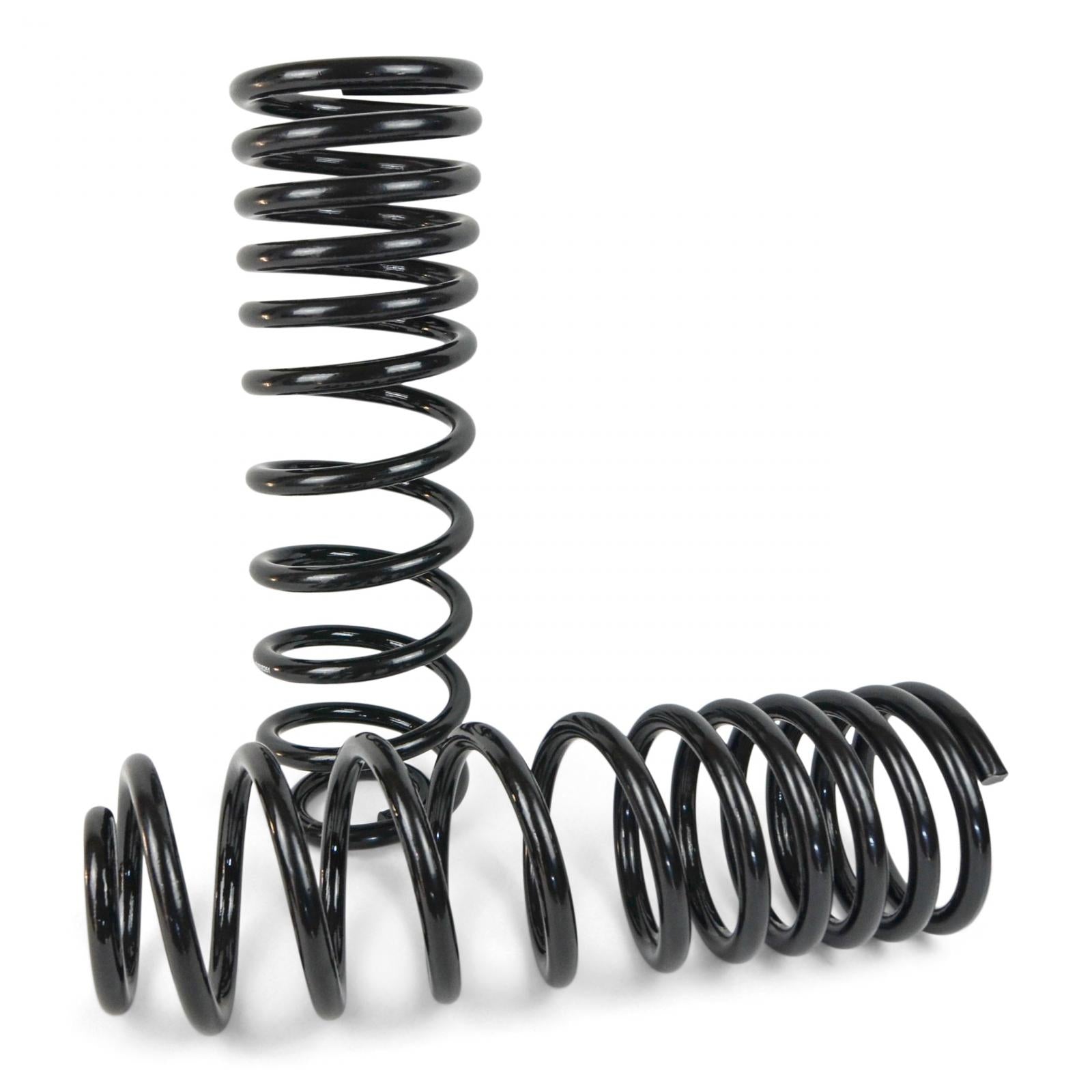

Jeep Gladiator JT 2020+ triple rate coils provide the perfect balance between on and offroad handling, ride quality, offroad flex and weight carrying ability.
- Triple Rate
- Free Length = 21.250 inch +/-.25
- Spring Rate 1 = 145 lbs/in
- Spring Rate 2 = 250 lbs/in
- Spring Rate 3 = 320 lbs/in
- Powder Coated Black
- Made in the USA
Coil Springs: Linear rate, dual rate, triple rate, what do you really need? We actually use all 3 variants depending on the vehicle, height and capacity requirements. Linear coils have a single spring rate and are evenly spaced top to bottom which makes for a great spring for most applications.
The main advantage being that the coils don't touch each other, which can lead to wear and tear and coil failure. The dual rate coil has a tight set of coils usually at the top, and then a second set of coils with more traditional spacing below. Dual rate coils do not ride any better than single rate coils despite popular belief.
The first rate is usually completely compressed and acts as a spacer, its purpose is to provide a longer free length coil so at maximum articulation the coil doesn't unseat. In most applications, including the front of our JL/JT 2.5 inch and 3.5 inch lift kits the coils do not unseat and there is a top post and bottom bump stop present so coils cannot fall out even at max articulation.
But in the rear, there is no coil post or lower internal retainer, and therefore a dual rate coil is necessary, or in the JT's case a triple rate coil due to the additional cargo area and weight. All of our coils are powder coated black using a new SealKor finish which is a zinc rich powder coat to help in the prevention of rust and corrosion.
- Triple Rate
- Free Length = 21.250 inch +/-.25
- Sold as a pair
- Spring Rate 1 = 145 lbs/in
- Spring Rate 2 = 250 lbs/in
- Spring Rate 3 = 320 lbs/in
- Powder Coated Black
- Made In the USA
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2018 | Jeep | Wrangler | Sport | |
| 2019 | Jeep | Wrangler | Sport | |
| 2020 | Jeep | Wrangler | Sport | |
| 2021 | Jeep | Wrangler | Sport | |
| 2022 | Jeep | Wrangler | Sport | |
| 2023 | Jeep | Wrangler | Sport | |
| 2024 | Jeep | Wrangler | Sport | |
| 2018 | Jeep | Wrangler | Unlimited Moab | |
| 2019 | Jeep | Wrangler | Unlimited Moab | |
| 2018 | Jeep | Wrangler | Unlimited Rubicon | |
| 2019 | Jeep | Wrangler | Unlimited Rubicon | |
| 2020 | Jeep | Wrangler | Unlimited Rubicon | |
| 2021 | Jeep | Wrangler | Unlimited Rubicon | |
| 2022 | Jeep | Wrangler | Unlimited Rubicon | |
| 2023 | Jeep | Wrangler | Unlimited Rubicon | |
| 2024 | Jeep | Wrangler | Unlimited Rubicon | |
| 2018 | Jeep | Wrangler | Unlimited Sport S | |
| 2019 | Jeep | Wrangler | Unlimited Sport S | |
| 2020 | Jeep | Wrangler | Unlimited Sport S | |
| 2021 | Jeep | Wrangler | Unlimited Sport S | |
| 2022 | Jeep | Wrangler | Unlimited Sport S | |
| 2023 | Jeep | Wrangler | Unlimited Sport S | |
| 2024 | Jeep | Wrangler | Unlimited Sport S | |
| 2018 | Jeep | Wrangler | Sport S | |
| 2019 | Jeep | Wrangler | Sport S | |
| 2020 | Jeep | Wrangler | Sport S | |
| 2021 | Jeep | Wrangler | Sport S | |
| 2022 | Jeep | Wrangler | Sport S | |
| 2023 | Jeep | Wrangler | Sport S | |
| 2024 | Jeep | Wrangler | Sport S | |
| 2018 | Jeep | Wrangler | Unlimited Sport | |
| 2019 | Jeep | Wrangler | Unlimited Sport | |
| 2020 | Jeep | Wrangler | Unlimited Sport | |
| 2021 | Jeep | Wrangler | Unlimited Sport | |
| 2022 | Jeep | Wrangler | Unlimited Sport | |
| 2023 | Jeep | Wrangler | Unlimited Sport | |
| 2024 | Jeep | Wrangler | Unlimited Sport | |
| 2018 | Jeep | Wrangler | Rubicon | |
| 2019 | Jeep | Wrangler | Rubicon | |
| 2020 | Jeep | Wrangler | Rubicon | |
| 2021 | Jeep | Wrangler | Rubicon | |
| 2022 | Jeep | Wrangler | Rubicon | |
| 2023 | Jeep | Wrangler | Rubicon | |
| 2024 | Jeep | Wrangler | Rubicon | |
| 2018 | Jeep | Wrangler | Unlimited Sahara | |
| 2019 | Jeep | Wrangler | Unlimited Sahara | |
| 2020 | Jeep | Wrangler | Unlimited Sahara | |
| 2021 | Jeep | Wrangler | Unlimited Sahara | |
| 2022 | Jeep | Wrangler | Unlimited Sahara | |
| 2023 | Jeep | Wrangler | Unlimited Sahara | |
| 2024 | Jeep | Wrangler | Unlimited Sahara | |
| 2021 | Jeep | Wrangler | 80th Anniversary | |
| 2021 | Jeep | Wrangler | Unlimited Rubicon 392 | |
| 2022 | Jeep | Wrangler | Unlimited Rubicon 392 | |
| 2023 | Jeep | Wrangler | Unlimited Rubicon 392 | |
| 2024 | Jeep | Wrangler | Unlimited Rubicon 392 | |
| 2021 | Jeep | Wrangler | Unlimited Rubicon 4xe | |
| 2022 | Jeep | Wrangler | Unlimited Rubicon 4xe | |
| 2023 | Jeep | Wrangler | Unlimited Rubicon 4xe | |
| 2024 | Jeep | Wrangler | Unlimited Rubicon 4xe | |
| 2021 | Jeep | Wrangler | Unlimited Sahara Altitude | |
| 2022 | Jeep | Wrangler | Unlimited Sahara Altitude | |
| 2023 | Jeep | Wrangler | Unlimited Sahara Altitude | |
| 2024 | Jeep | Wrangler | Unlimited Sahara Altitude | |
| 2021 | Jeep | Wrangler | Unlimited Sahara 4xe | |
| 2022 | Jeep | Wrangler | Unlimited Sahara 4xe | |
| 2023 | Jeep | Wrangler | Unlimited Sahara 4xe | |
| 2024 | Jeep | Wrangler | Unlimited Sahara 4xe | |
| 2021 | Jeep | Wrangler | Unlimited High Altitude 4xe | |
| 2022 | Jeep | Wrangler | Unlimited High Altitude 4xe | |
| 2023 | Jeep | Wrangler | Unlimited High Altitude 4xe | |
| 2024 | Jeep | Wrangler | Unlimited High Altitude 4xe | |
| 2021 | Jeep | Wrangler | Unlimited Sport Altitude | |
| 2022 | Jeep | Wrangler | Unlimited Sport Altitude | |
| 2023 | Jeep | Wrangler | Unlimited Sport Altitude | |
| 2024 | Jeep | Wrangler | Unlimited Sport Altitude | |
| 2021 | Jeep | Wrangler | Unlimited Willys | |
| 2022 | Jeep | Wrangler | Unlimited Willys | |
| 2023 | Jeep | Wrangler | Unlimited Willys | |
| 2024 | Jeep | Wrangler | Unlimited Willys | |
| 2021 | Jeep | Wrangler | Unlimited Willys Sport | |
| 2022 | Jeep | Wrangler | Unlimited Willys Sport | |
| 2023 | Jeep | Wrangler | Unlimited Willys Sport | |
| 2024 | Jeep | Wrangler | Unlimited Willys Sport | |
| 2021 | Jeep | Wrangler | Willys | |
| 2022 | Jeep | Wrangler | Willys | |
| 2023 | Jeep | Wrangler | Willys | |
| 2024 | Jeep | Wrangler | Willys | |
| 2021 | Jeep | Wrangler | Willys Sport | |
| 2022 | Jeep | Wrangler | Willys Sport | |
| 2023 | Jeep | Wrangler | Willys Sport | |
| 2024 | Jeep | Wrangler | Willys Sport | |
| 2021 | Jeep | Wrangler | Unlimited Islander | |
| 2021 | Jeep | Wrangler | Unlimited High Altitude | |
| 2022 | Jeep | Wrangler | Unlimited High Altitude | |
| 2023 | Jeep | Wrangler | Unlimited High Altitude | |
| 2024 | Jeep | Wrangler | Unlimited High Altitude | |
| 2021 | Jeep | Wrangler | Freedom | |
| 2021 | Jeep | Wrangler | Unlimited Freedom | |
| 2021 | Jeep | Wrangler | Unlimited 80th Anniversary | |
| 2021 | Jeep | Wrangler | Islander | |
| 2022 | Jeep | Wrangler | Unlimited High Tide | |
| 2023 | Jeep | Wrangler | Unlimited High Tide | |
| 2024 | Jeep | Wrangler | Unlimited High Tide | |
| 2023 | Jeep | Gladiator | Mojave | |
| 2024 | Jeep | Gladiator | Mojave | |
| 2023 | Jeep | Wrangler | Freedom | |
| 2023 | Jeep | Gladiator | Willys | |
| 2024 | Jeep | Gladiator | Willys | |
| 2023 | Jeep | Gladiator | Freedom | |
| 2024 | Jeep | Gladiator | Freedom | |
| 2023 | Jeep | Gladiator | High Altitude | |
| 2024 | Jeep | Gladiator | High Altitude | |
| 2023 | Jeep | Wrangler | Unlimited Willys 4xe | |
| 2024 | Jeep | Wrangler | Unlimited Willys 4xe | |
| 2023 | Jeep | Gladiator | Overland | |
| 2024 | Jeep | Gladiator | Overland | |
| 2023 | Jeep | Gladiator | Rubicon | |
| 2024 | Jeep | Gladiator | Rubicon | |
| 2023 | Jeep | Gladiator | Sport | |
| 2024 | Jeep | Gladiator | Sport | |
| 2023 | Jeep | Gladiator | Sport S | |
| 2024 | Jeep | Gladiator | Sport S | |
| 2023 | Jeep | Gladiator | Texas Trail | |
| 2024 | Jeep | Gladiator | Texas Trail | |
| 2023 | Jeep | Wrangler | Unlimited Freedom | |
| 2023 | Jeep | Gladiator | Willys Sport | |
| 2024 | Jeep | Gladiator | Willys Sport | |
| 2024 | Jeep | Gladiator | Mojave X | |
| 2024 | Jeep | Gladiator | Rubicon X |
Specifications:
| Availability | Available |
