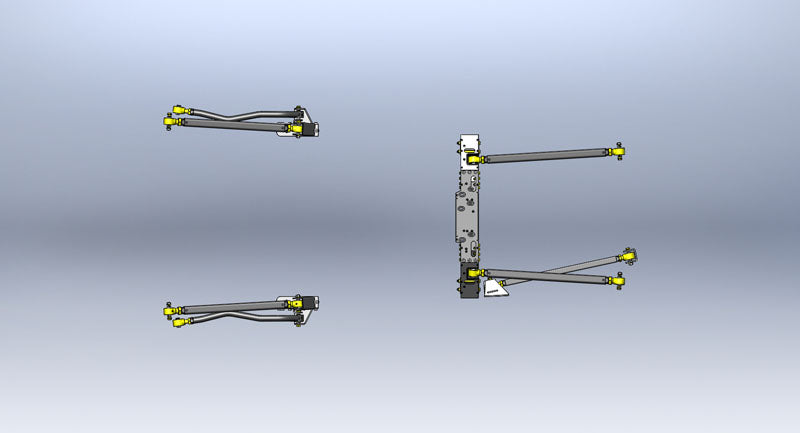

Jeep Wrangler Pro Series 3 Link Long Arm Upgrade Kit 07-18 JK Clayton Off Road

Jeep Wrangler Pro Series 3 Link Long Arm Upgrade Kit 07-18 JK Clayton Off Road

Our new Pro Series 3 link front, JK Long arm system is here! The arms have been upgraded to our Pro Series arms which means forged johnny joints at both ends for maximum adjustmentand the strength you want when running larger tires and heavier axles. Like our standard JK long arm system, we still use a bolt in 3 piece cross member and then added a new 1/4 weld on frame bracket. Depending on your axle type we offer an optional front bridge or truss, or simply attach your 3 link axle uppermount to your existing truss.

This 3 link front upper arm does come with right hand, and left hand johnny joints for simple caster angle adjustment. The rear of the Pro Series kit is very similarhowever is upgraded to Pro Seres arms meaning greasable johnny joints at both ends.

Some key features with the new JK front long arm kit is our bolt-in 3 piece cross member. The cross member bolts into the OEM location and has pockets for the forged 2.5 inch johnny joints which allows for maximum ground clearance. This cross member can be simply bolted in, and is also setup so it can be welded in for the more abusive drivers.

Like all other Clayton Off Road cross members the center section is removable, making any transmission changes simple and can be done without touching any suspension arms. The rear drag link bolt on bracket was designed to allow for 4 truly long arms. This bracket can be installed without removing the gas tank, and uses 8 bolts to securely clamp to the frame rail.

Both the 3 piece cross member and rear frame brackets were designed using the latest 3D Solid Works program, CNC laser cut, and CNC bent for maximum strength and accuracy. This kit truely gives you all the benifits any customer is looking for both on and offroad.

The longer arms correct all the geomerty issues creating a better than factory ride. And the 3 piece cross member, 1/4 Inch rear frame brackets, Pro Series arms which carry our lifetime warranty against bending or breaking, your JK will be ready for any trail you desire.

Note: 1. Welding is required to install this kit. 2. Custom exhaust is also necessary to clear the upper 3 link arm. 3. Front CV Style Driveshaft is required.

This Part Fits:

Year	Make	Model	Submodel	Notes
2007	Jeep	Wrangler	X
2008	Jeep	Wrangler	X
2009	Jeep	Wrangler	X
2010	Jeep	Wrangler	X
2007	Jeep	Wrangler	Rubicon
2008	Jeep	Wrangler	Rubicon
2009	Jeep	Wrangler	Rubicon
2010	Jeep	Wrangler	Rubicon
2011	Jeep	Wrangler	Rubicon
2012	Jeep	Wrangler	Rubicon
2013	Jeep	Wrangler	Rubicon
2014	Jeep	Wrangler	Rubicon
2015	Jeep	Wrangler	Rubicon
2016	Jeep	Wrangler	Rubicon
2017	Jeep	Wrangler	Rubicon
2007	Jeep	Wrangler	Unlimited X
2008	Jeep	Wrangler	Unlimited X
2009	Jeep	Wrangler	Unlimited X
2010	Jeep	Wrangler	Unlimited X
2007	Jeep	Wrangler	Sahara
2008	Jeep	Wrangler	Sahara
2009	Jeep	Wrangler	Sahara
2010	Jeep	Wrangler	Sahara
2011	Jeep	Wrangler	Sahara
2012	Jeep	Wrangler	Sahara
2013	Jeep	Wrangler	Sahara
2014	Jeep	Wrangler	Sahara
2015	Jeep	Wrangler	Sahara
2016	Jeep	Wrangler	Sahara
2017	Jeep	Wrangler	Sahara
2007	Jeep	Wrangler	Unlimited Sahara
2008	Jeep	Wrangler	Unlimited Sahara
2009	Jeep	Wrangler	Unlimited Sahara
2010	Jeep	Wrangler	Unlimited Sahara
2011	Jeep	Wrangler	Unlimited Sahara
2012	Jeep	Wrangler	Unlimited Sahara
2013	Jeep	Wrangler	Unlimited Sahara
2014	Jeep	Wrangler	Unlimited Sahara
2015	Jeep	Wrangler	Unlimited Sahara
2016	Jeep	Wrangler	Unlimited Sahara
2017	Jeep	Wrangler	Unlimited Sahara
2007	Jeep	Wrangler	Unlimited Rubicon
2008	Jeep	Wrangler	Unlimited Rubicon
2009	Jeep	Wrangler	Unlimited Rubicon
2010	Jeep	Wrangler	Unlimited Rubicon
2011	Jeep	Wrangler	Unlimited Rubicon
2012	Jeep	Wrangler	Unlimited Rubicon
2013	Jeep	Wrangler	Unlimited Rubicon
2014	Jeep	Wrangler	Unlimited Rubicon
2015	Jeep	Wrangler	Unlimited Rubicon
2016	Jeep	Wrangler	Unlimited Rubicon
2017	Jeep	Wrangler	Unlimited Rubicon
2010	Jeep	Wrangler	Unlimited Sport
2011	Jeep	Wrangler	Unlimited Sport
2012	Jeep	Wrangler	Unlimited Sport
2013	Jeep	Wrangler	Unlimited Sport
2014	Jeep	Wrangler	Unlimited Sport
2015	Jeep	Wrangler	Unlimited Sport
2016	Jeep	Wrangler	Unlimited Sport
2017	Jeep	Wrangler	Unlimited Sport
2010	Jeep	Wrangler	Sport
2011	Jeep	Wrangler	Sport
2012	Jeep	Wrangler	Sport
2013	Jeep	Wrangler	Sport
2014	Jeep	Wrangler	Sport
2015	Jeep	Wrangler	Sport
2016	Jeep	Wrangler	Sport
2017	Jeep	Wrangler	Sport
2011	Jeep	Wrangler	Unlimited 70th Anniversary
2011	Jeep	Wrangler	70th Anniversary
2016	Jeep	Wrangler	75th Anniversary
2016	Jeep	Wrangler	Sport S
2016	Jeep	Wrangler	Unlimited Sport S
2016	Jeep	Wrangler	Unlimited 75th Anniversary
2018	Jeep	Wrangler JK	Sport S
2018	Jeep	Wrangler JK	Unlimited Rubicon
2018	Jeep	Wrangler JK	Sport
2018	Jeep	Wrangler JK	Unlimited Sahara
2018	Jeep	Wrangler JK	Sahara
2018	Jeep	Wrangler JK	Unlimited Sport
2018	Jeep	Wrangler JK	Unlimited Sport S
2018	Jeep	Wrangler JK	Rubicon

Specifications:

Availability

Available
