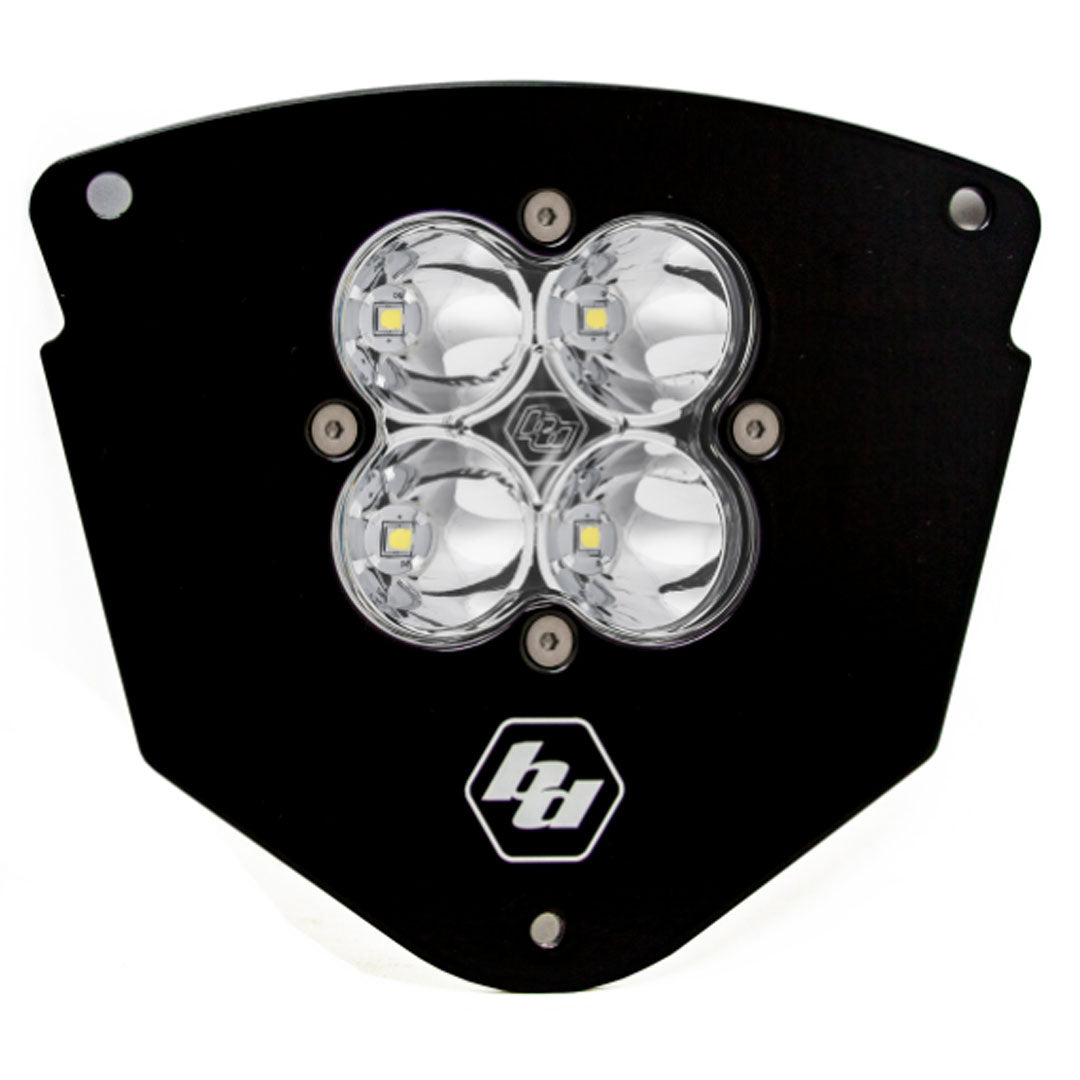

KTM Headlight Kit DC 05-07 Black Squadron Sport Baja Designs

KTM Headlight Kit DC 05-07 Black Squadron Sport Baja Designs

$0.00 USD

If you are looking for an off road light that features unique styling and leading edge performance, than the Squadron Sport, LED KTM 2005-2007 Kit is the light for you. The Sport produces an impressive 2,260 lumens while only drawing 20 watts, allowing for a longer ride. An industry first 30 Day Satisfaction Guarantee Limited Lifetime Warranty is included for the ultimate in purchase protection.
Note: only plug and play for the 2007 EXCs

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights.

Please note: Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness P/N:12-9016

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 2,260 Utilizing 4 LEDs
  • Wattage/Amps: 20W / 1.4A
  • Dimensions: 3.07 x 2.77 x 3.07 inch
  • Weight: 12 ounces
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing

Includes:
Squadron Sport, LED KTM 2005-2007 Kit
