Description
Cable seal drill-tube sizing

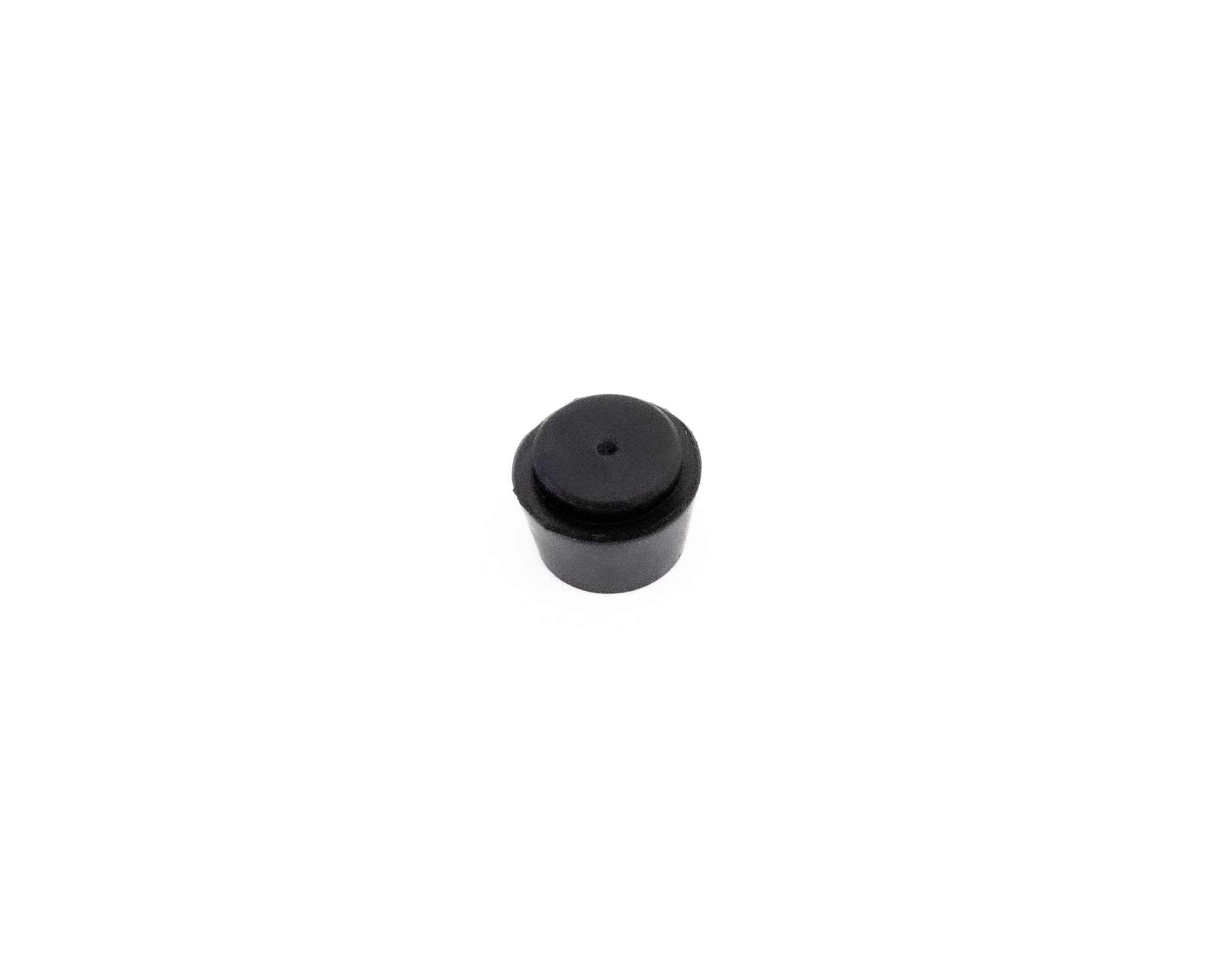

Use a drill tube within ±0.02 inch (±0.508 mm) of the measured cable diameter. Choose the closest available size within this range. If none of the supplied 6, 8, 10 or 12 mm tubes qualifies, use a matching-size tube. Keep at least 0.125 inch (3.175 mm) of rubber between holes and at the outside edge.

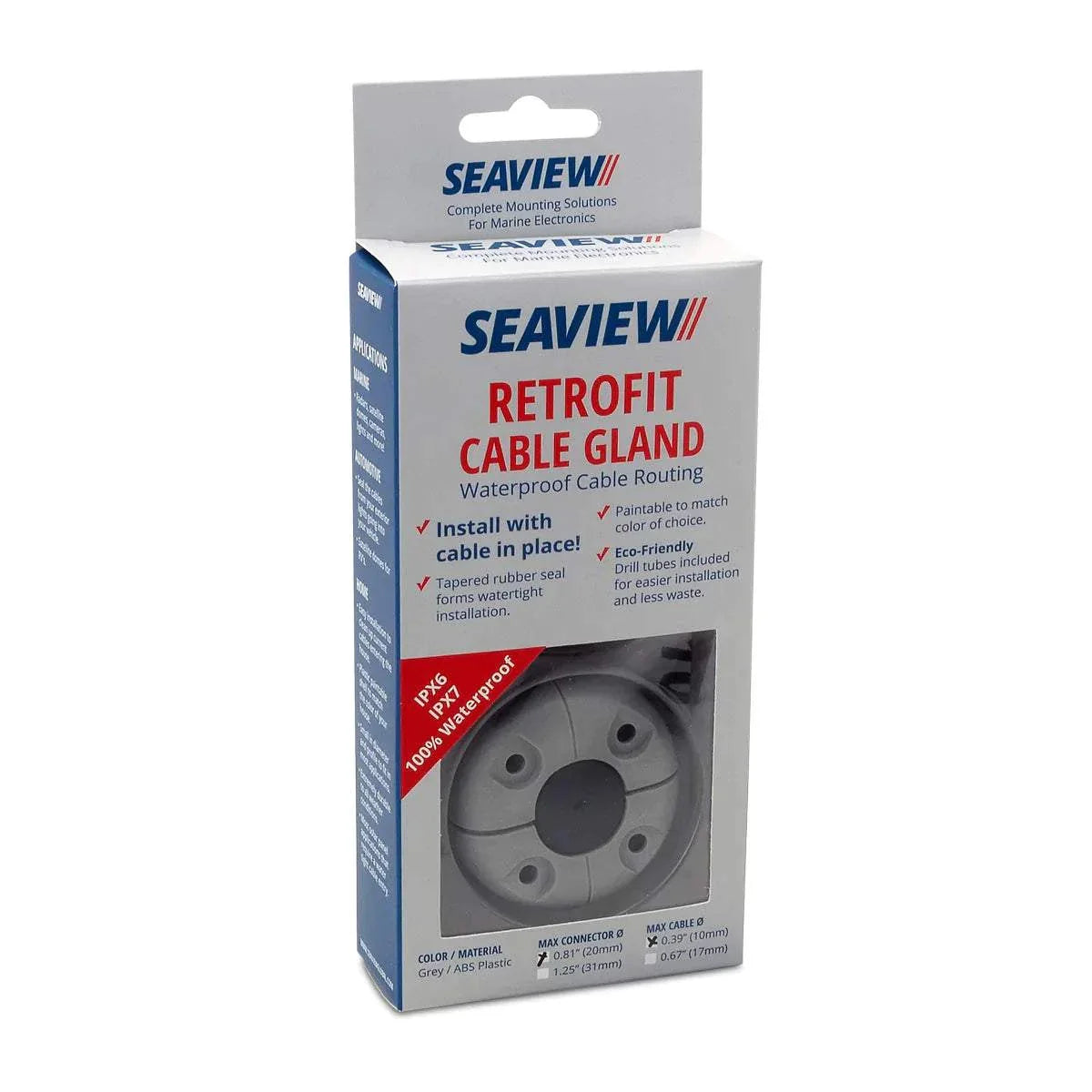

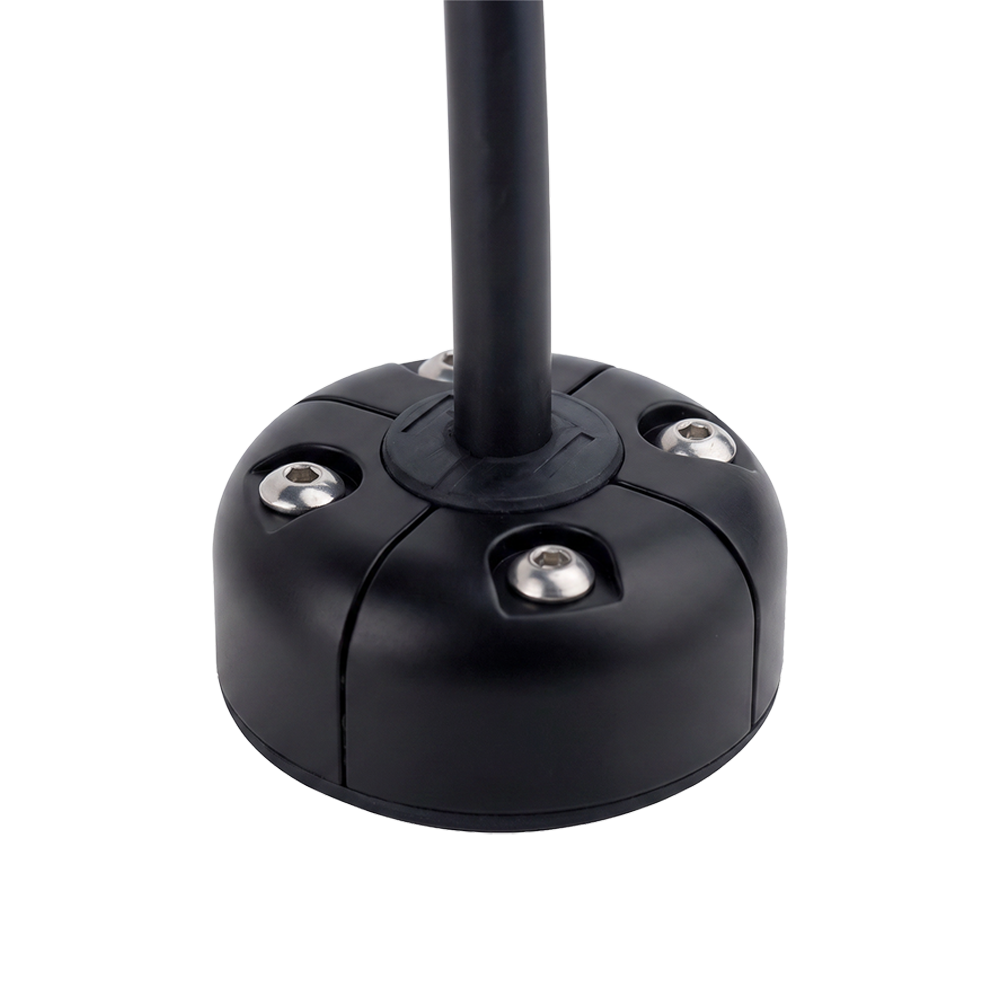

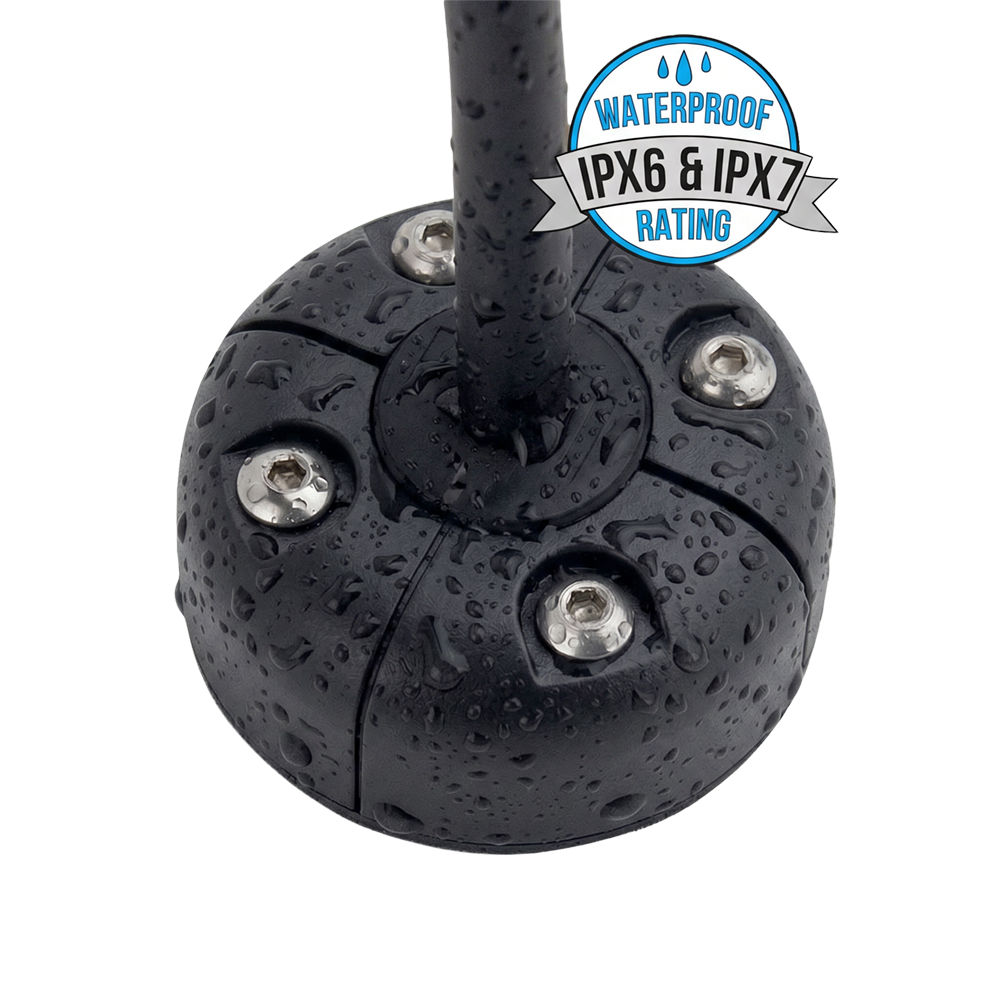

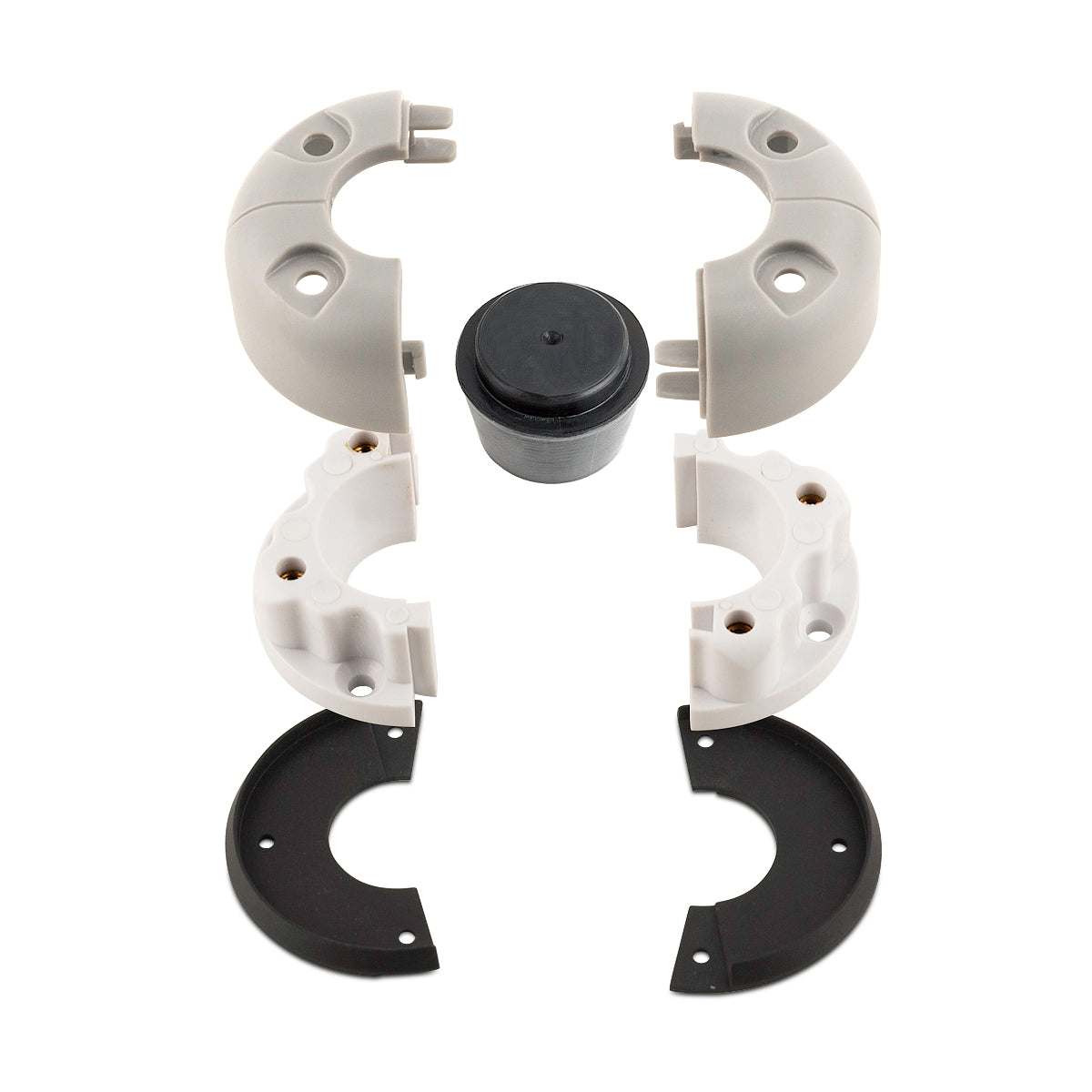

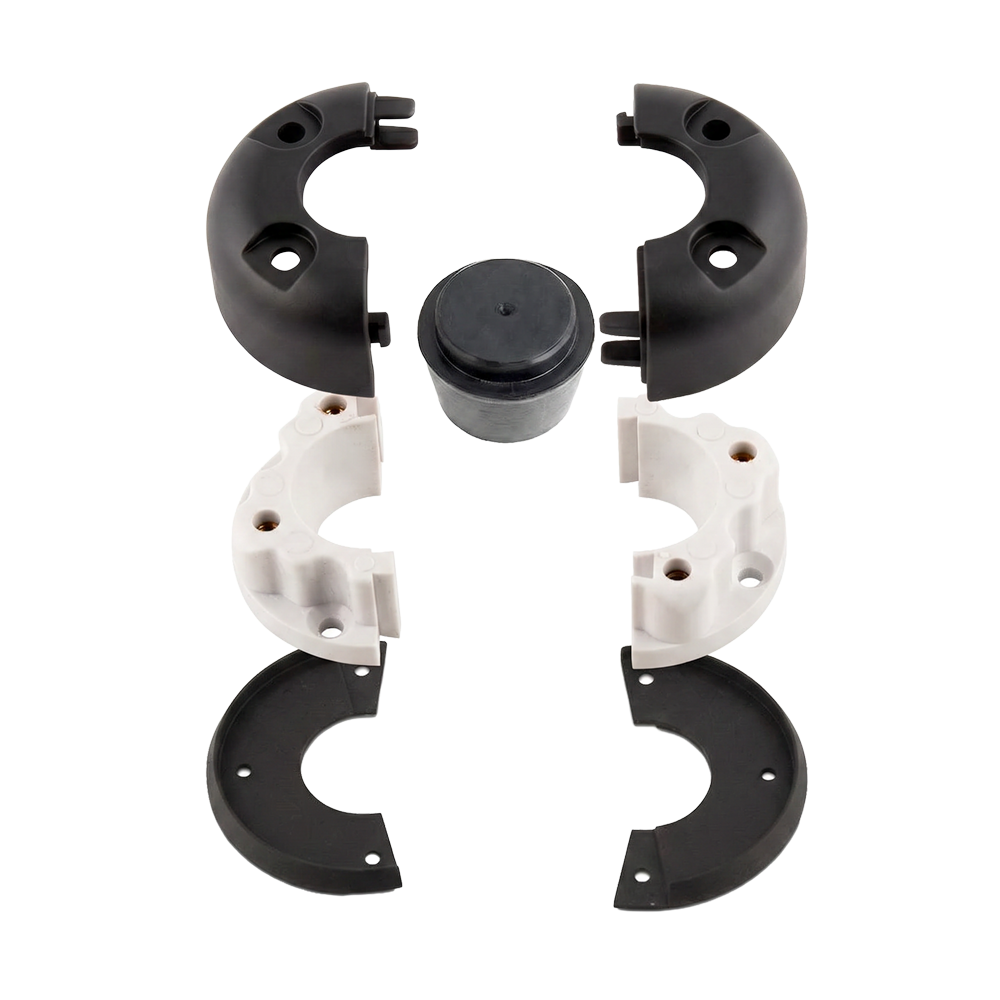

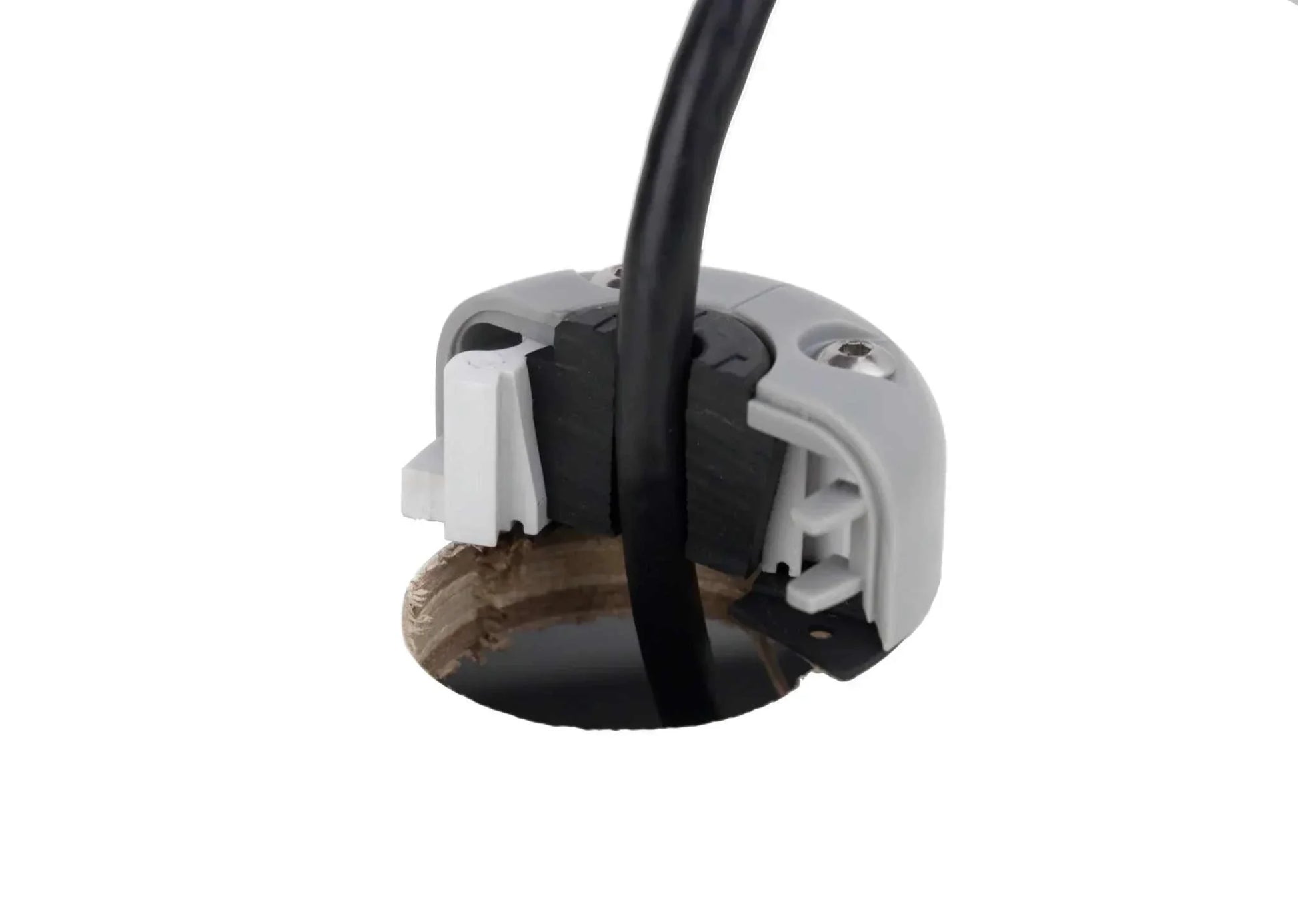

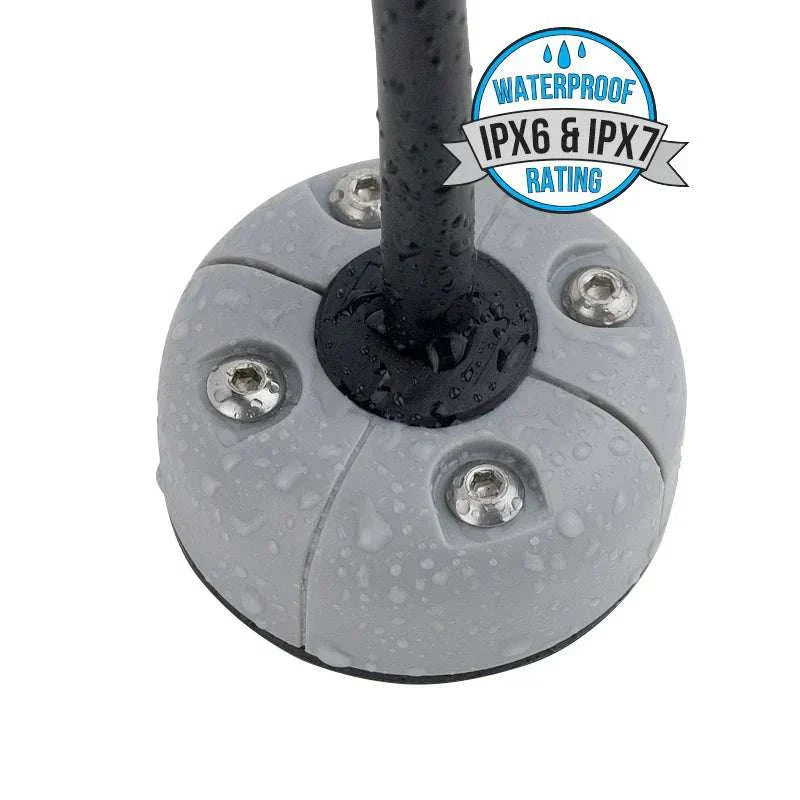

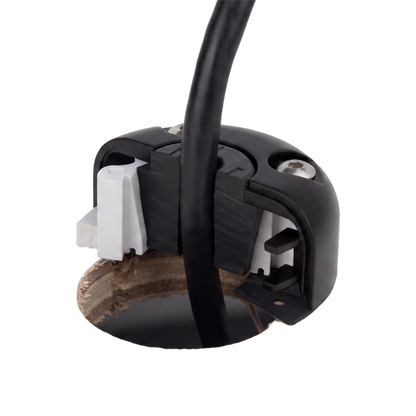

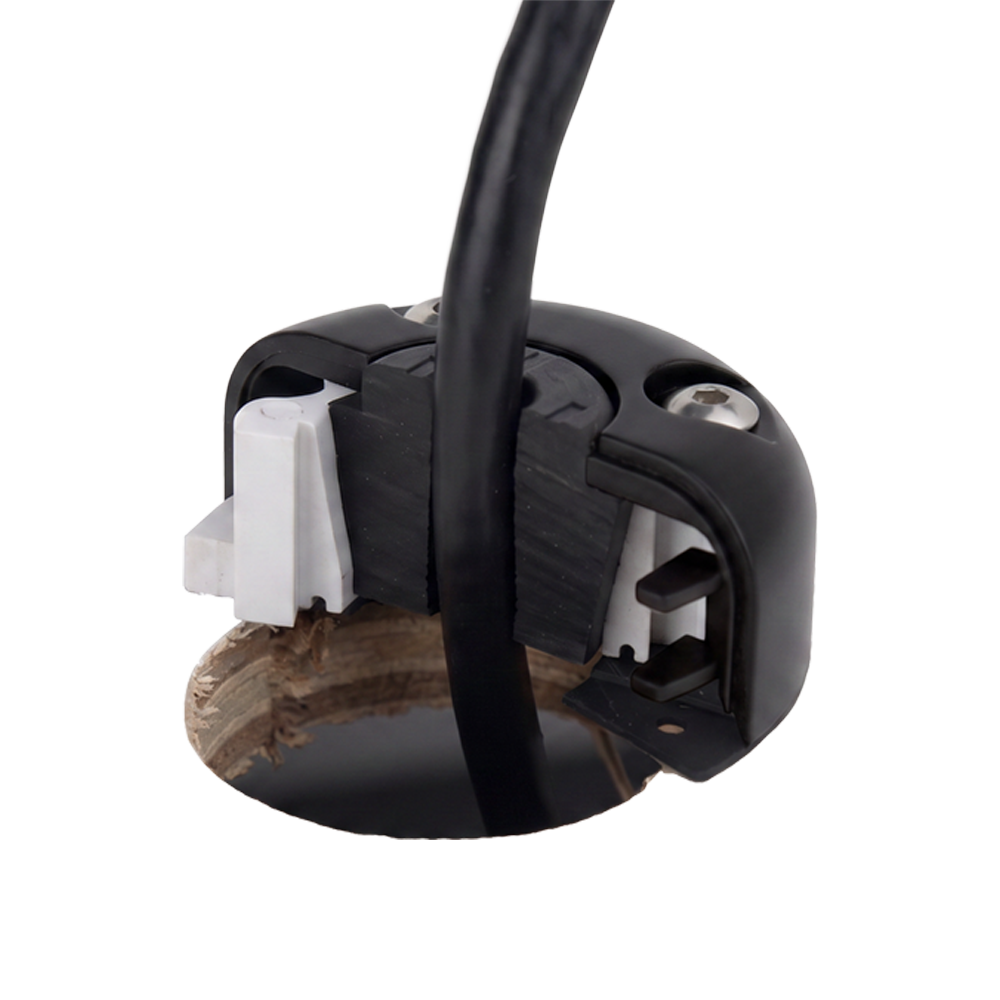

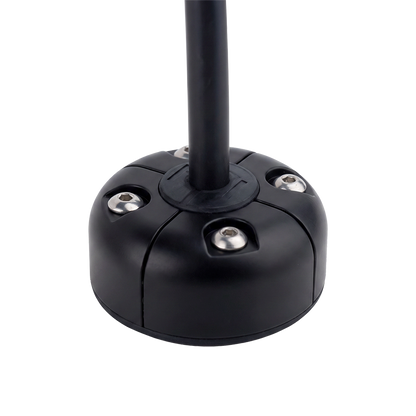

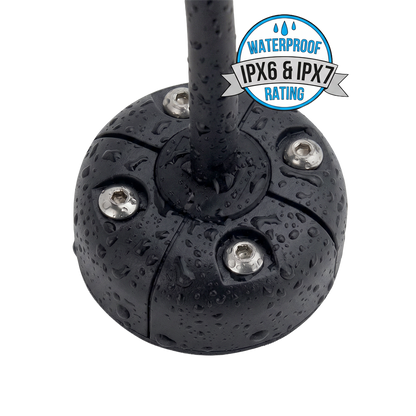

The Seaview Retrofit Cable Seal is the only guaranteed and proven watertight installation for your currently installed cables! In a new category of its own, the Retrofit Cable Seal provides a watertight installation for your currently installed cables. No need to re-run your cables, simply install with your cable in place! The Seaview Retrofit Cable Seals provide a waterproof pass-through for antenna, transducer, lights, power and other cables without removal of the factory installed cable connector.
These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.
-
| Seaview Part Number |
Dimensions |

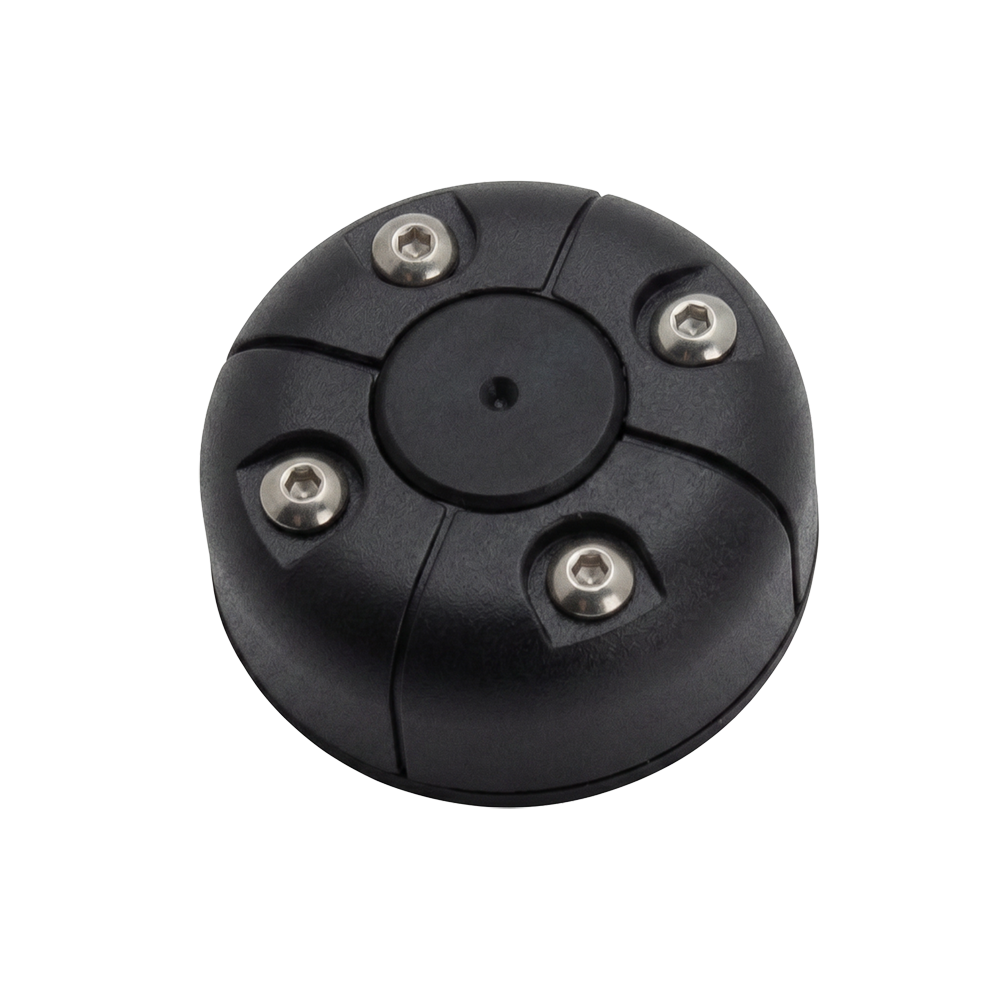

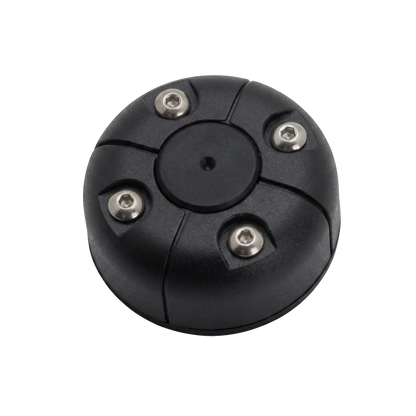

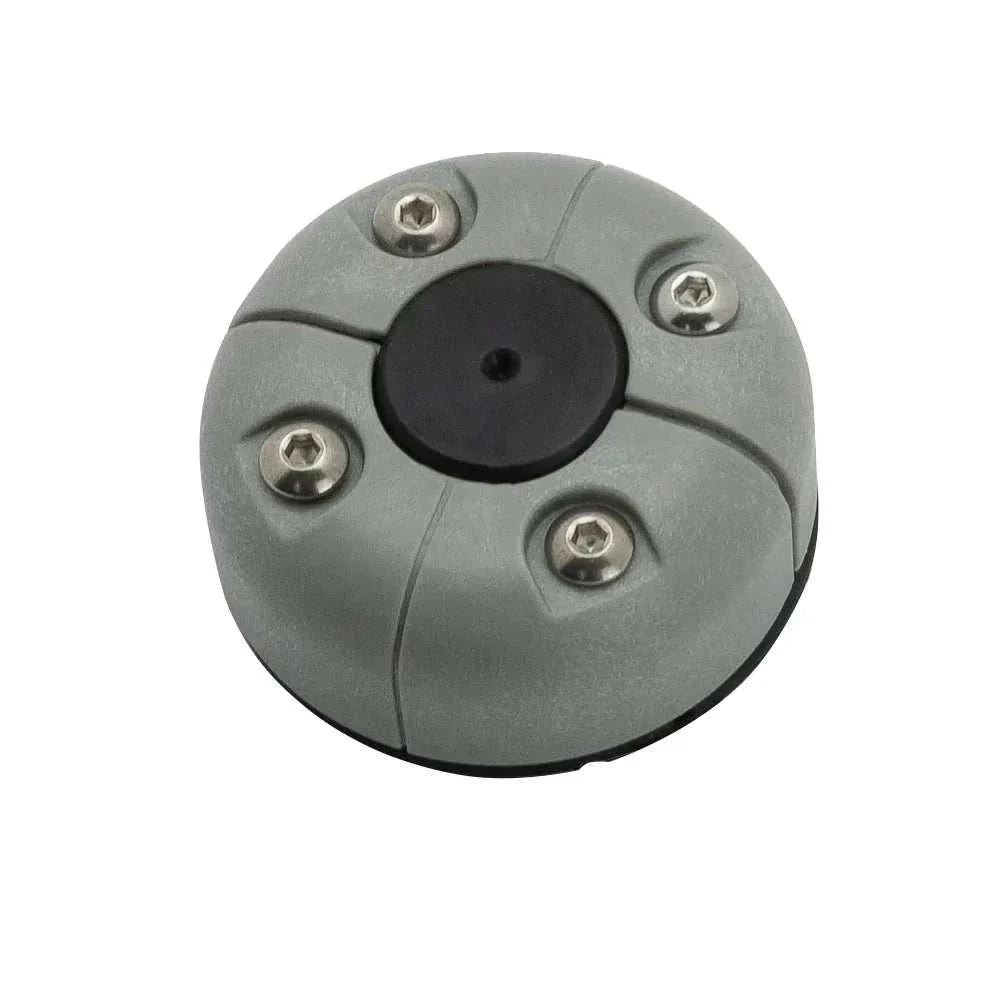

| CG20PG2 / CG20PB2 (small round) |
Download |

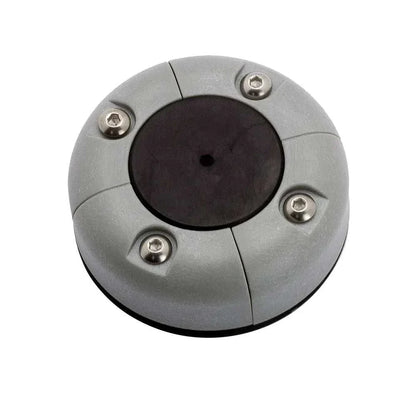

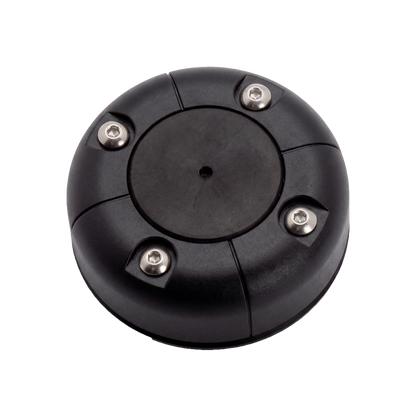

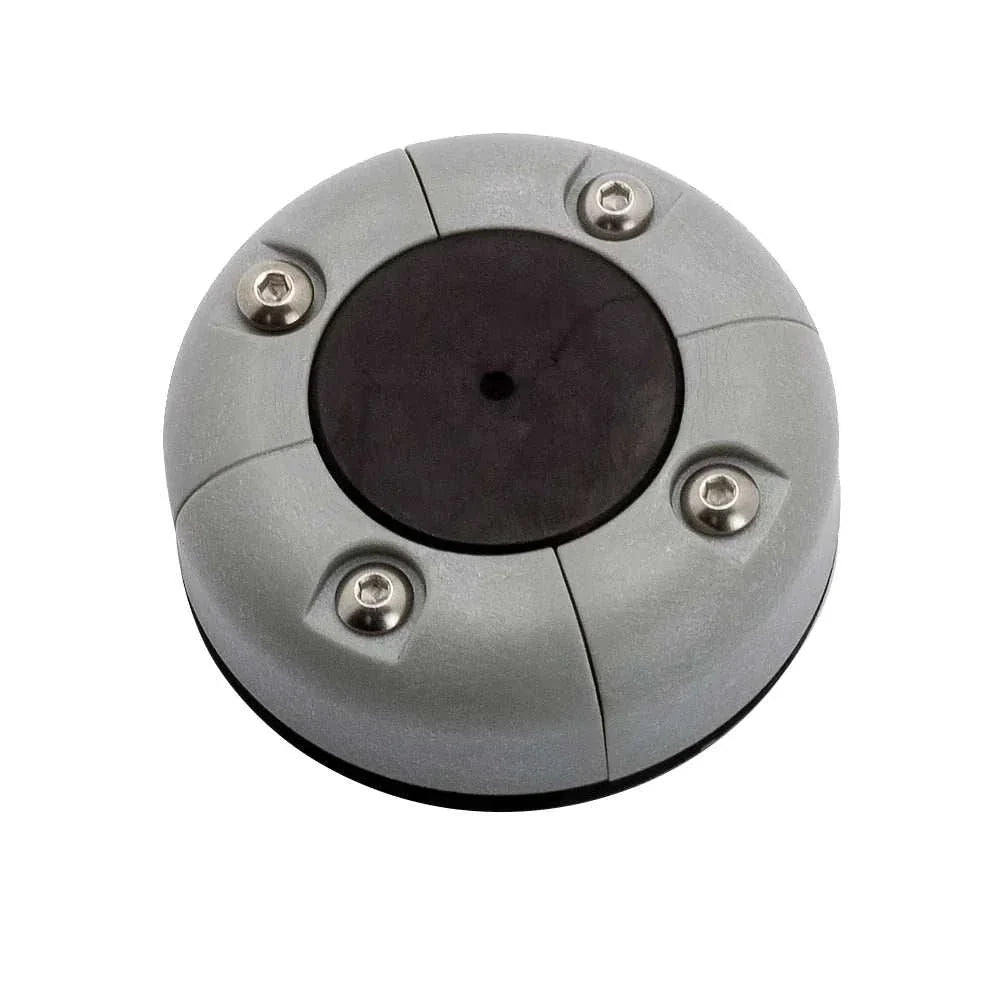

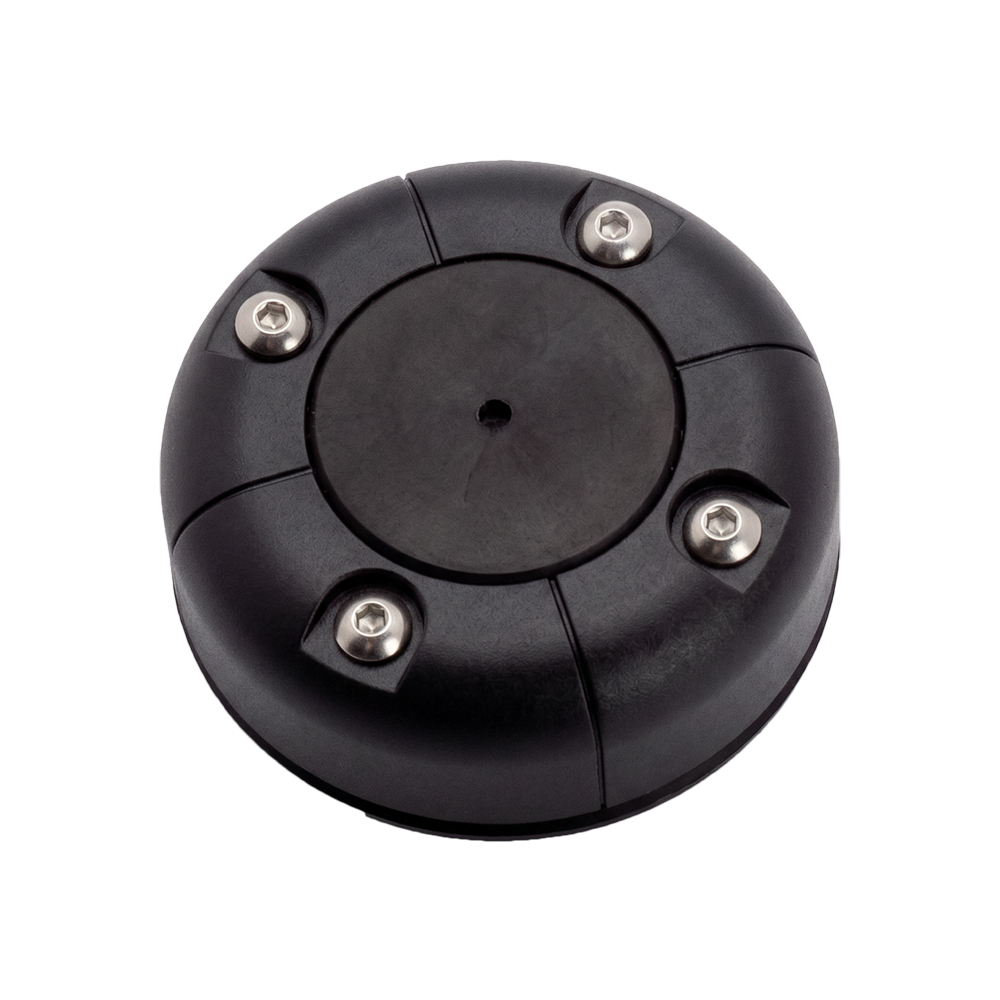

| CG30PG2 / CG30PB2 (large round) |
Download |
-
Installation Instructions
Download the installation instructions in the chart below.
| Seaview Part Number |
Installation Instructions |
| All Retrofit Cable Seals |
Download |
