Warn
Warn VR EVO 10-S WINCH
Warn VR EVO 10-S WINCH
$949.49 USD
Couldn't load pickup availability
Overview
With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece cast-aluminum tie-plate for added strength and durability
- Wired remote AND wireless phone options for ease of use and versatility
- Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications
| TYPE | Electric |
| RECOMMENDED USE | Vehicle Recovery |
| MOUNT TYPE | Vehicle Mount |
| VOLTAGE | 12 Volt DC |
| ELECTRICAL CONTROL TYPE | Albright Contactor |
| MOTOR TYPE | Series Wound |
| DRIVE GEAR TYPE | 3-Stage Planetary |
| GEAR REDUCTION RATIO | 218:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Spring |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE LENGTH (FT) | 90 |
| LINE MATERIAL | Synthetic |
| FAIRLEAD TYPE | Hawse |
| REMOTE TYPE | plug in remote with wireless phone capability |
| MOUNTING HOLE QUANTITY | 4 |

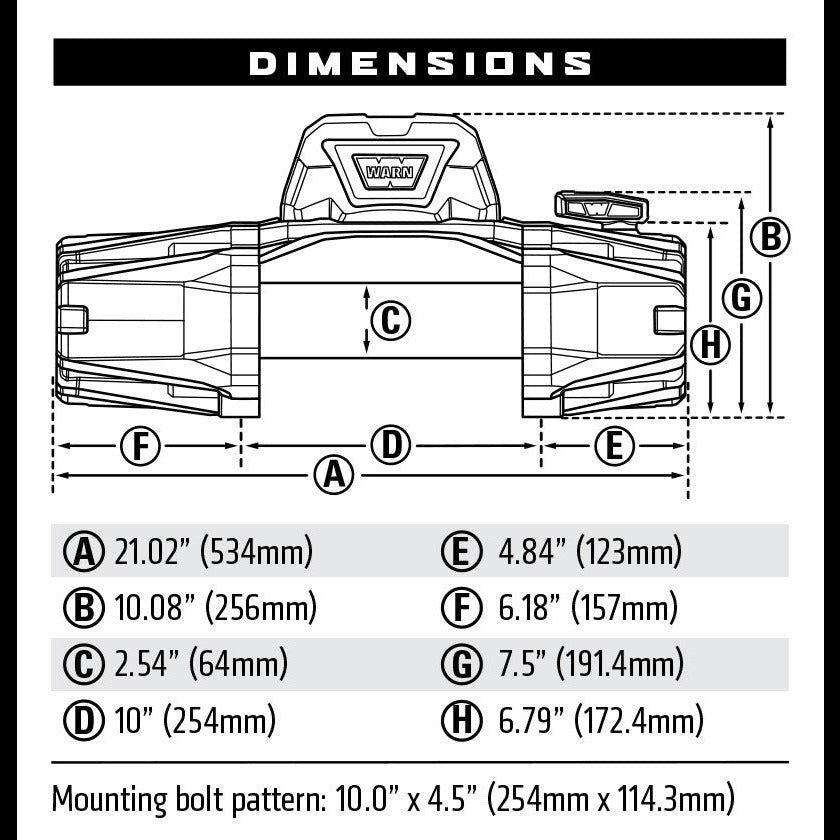

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| MAX LINE PULL/ LINE SPEED | 1000 pound / 5.2 feet per minute |
| MAX AMP DRAW/ LINE PULL | 358 Amps / 1000 pounds |
| DRUM MATERIAL | Steel |
